Aluminum Foil For Lithium Ion Battery (Al, Purity: 99.9%, Thickness: 0.01-0.02mm)

High Purity Aluminum Foil For Lithium Ion Battery

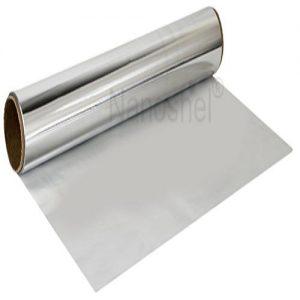

Product: Aluminum Foil for Lithium Ion Battery (Al, Purity: 99.9%, Thickness: 0.01-0.02mm)

Quality Control: Each lot of NANOSHEL Aluminum Foil was tested successfully.

Aluminum Foil

Aluminum Foil

Materials Aluminum Foil
Stock No NS6130-12-000338
CAS 7429-90-5 Confirm
Purity 99.9% Confirm
Thickness 0.01-0.02mm Confirm
Temper H18 Confirm
Application Lithium Ion Battery

Mechanical Performance

U.T.S ≥40 Mpa
Elongation ≥1%
Core (ID) 76.2mm
Wettability ≥B grade

Typical Chemical Analysis

Si ≥ 65 ppm
Fe ≤ 109 ppm
Mn ≤ 13 ppm
Ni ≤ 36 ppm
Cu ≤ 225 ppm
Ca ≤ 2 ppm
Si ≤ 5 ppm
Pb ≤ 12 ppm
Mg ≤ 25 ppm

Experts Review:

58496396Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)
Al Foil have excellent performance in lithium-ion battery manufacturing. Aluminum (Al) foils depending on the application of the Li-ion battery. Al foil is extensively used in consumer electronics and electric power tools. It is also widely used in Hybrid and Electric vehicle (EV) battery applications.


1252525Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
Aluminum Foil, Li-ion technology, manufacturers and researchers use Al foil as a current collector for the cathode materials because it naturally forms a passive layer on the surface that helps it resist corrosion at high potentials. Aluminum foil is used for packaging of foods, cosmetics, and chemical products, used for industrial applications. aluminum is non-magnetic, it is a good conductor, so even a thin sheet reflects almost all of an incident electric wave. Thin shields also have internal reflections that reduce the shielding effectiveness.


2536582Dr. Huojin Chan (University of Science and Technology of China, Hefei, Anhui, China)
Aluminum Foil to chemical attacks depends upon the specific compound or agent, but it has excellent and good compatibility with most products. Mechanical properties of any given aluminum foil, therefore, are directly related and similar to those of sheet or plate made of the same alloy in comparable temper or metallurgical condition. The only differences arise from the extreme thinness of the foil gauges of the metal.


10604509_1459864657612760_2405225879143508610_oDr. Ms. Yi Yen Shi, (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)
Al Foil is easily recycled. Plain aluminum foil can be compacted and re-melted. Laminated aluminum is processed to separate the supporting layers and the aluminum residue is reused in other applications. In addition, the energy contained in the thin foil component of a laminate can be recovered in the form of heat.


125448Dr. Hans Roelofs Ph.D (National Technical University of Athens, Greece)
Aluminum Foil
is an absolute barrier to light, oxygen, gases, moisture, bacteria and provides high level of protection, preservation, conservation of products characteristics for long period of time and without refrigeration. Aluminum Foil has an excellent thermal and electrical conductivity, ideal for heat-sealing or high-precision and ultra-sonic sealing. The largest applications of aluminum foil is flexible packaging, which includes aseptic beverage cartons, confectionary, bakery and other oven cooked products, coffee, tea and chocolate drinks, tobacco products, and pharmaceutical packaging.


Aluminum Foil

Aluminum Foil
