Home » Aluminium Nitride Nanopowder (AlN, Purity: 99.9%, APS: 65-75nm, Hexagonal)

NANOPOWDER COMPOUNDS

Stock No. CAS MSDS Specification COA
NS6130-02-200 24304-00-5 MSDS pdf Specification pdf COA pdf

Aluminium Nitride Nanopowder (AlN, Purity: 99.9%, APS: 65-75nm, Hexagonal)

Aluminum Nitride Nanopowder

Product: Aluminum Nitride Nanopowder (AlN, Purity: 99.9%, APS: 65-75nm, Hexagonal)

Quality Control: Each lot of Aluminum Nitride Nanopowder was tested successfully.

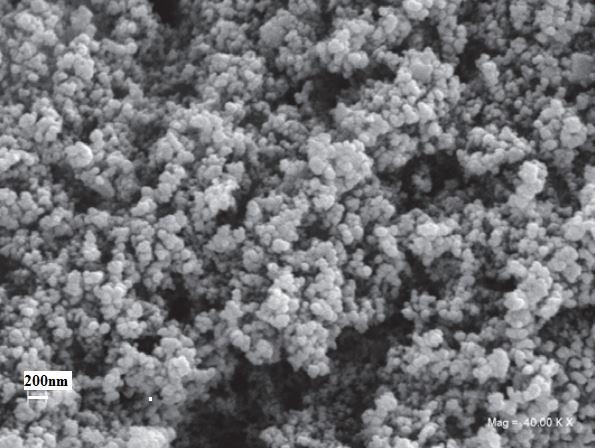

Aluminum Nitride Nanopowder – SEM

Aluminum Nitride Nanopowder – SEM

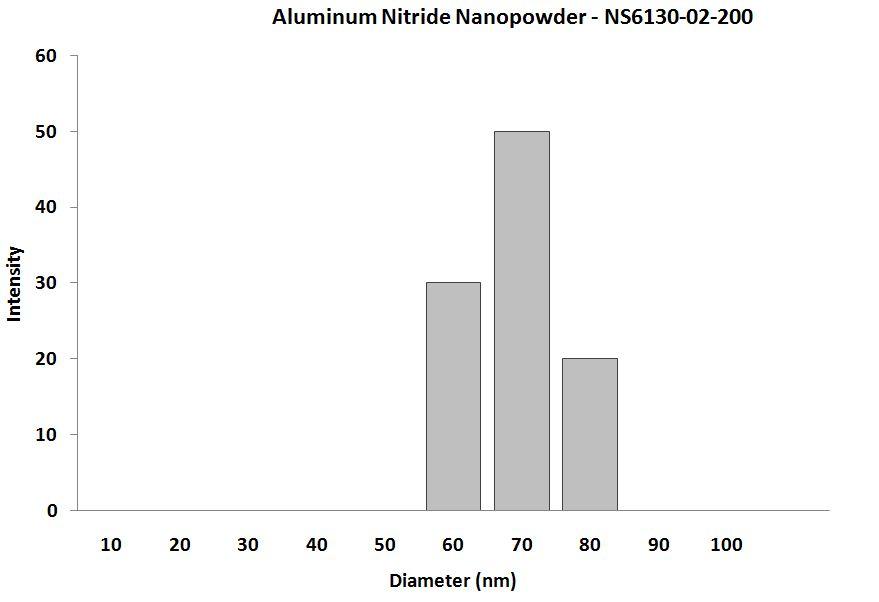

Aluminum Nitride Nanopowder – Size Analysis

Aluminum Nitride Nanopowder – Size Analysis


Product Aluminum Nitride Nanopowder
Stock No. NS6130-02-200
CAS 24304-00-5 Confirm
APS 65-75nm Confirm
Purity 99.9% Confirm
Molecular Formula AlN Confirm
Molecular Weight 40.982 g/mol Confirm
Color Off White Confirm
Density 3.3 g/cm³ Confirm
Melting Point 2200 Confirm
Boiling Point 2517 Confirm
Thermal Conductivity 80 to 200 W/m-K Confirm
Solubility Insoluble in water Confirm
Crystal Cell Hexagonal Confirm
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9 %
N >33 %
O <0.5%
C <0.4%
Fe <0.01%
Si <0.045 %
Ca <0.009 %
Cl <0.0004 %

Expert Reviews

Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)

Aluminum Nitride Nanopowder Performance High purity, small particle size distribution, large specific surface area, high surface activity, low bulk density, good performance of injection molding, composite materials, and good match with the semiconductor silicon, interface compatibility, and can improve the mechanical properties of composite materials and the thermal conductivity of dielectric.


Dr. Huojin Chan,  (University of Science and Technology of China, Hefei, Anhui, China)

Aluminum Nitride Nanopowder Application Manufacturing integrated circuit board, electronic devices, optical devices, radiator, high temperature crucible; Fabrication of metal matrix and polymer matrix composites, especially in the heat seal adhesives and electronic packaging materials have wide application; High thermally conductive ceramics; Composite ceramics, e.g. evaporation boats; Heat sinks; Electrically insulating packages for electronics; Crucibles for metals and salt melts; Thermally conductive filler for polymers; Components for wafer processing.


Dr. Ms. Yi Yen Shi,  (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

Aluminum Nitride Nanopowder is spherical, and their appearance is an off-white powder. Aluminum nitride nanoparticles are known for their small particle size distribution, high heat resistance, high surface activity, high level of purity, firmness, large specific surface area, low bulk density, and good performance of injection molding. These can be readily used with composite materials, and are a good match with the semiconductor silicon. They can improve the mechanical properties of composite materials and the thermal conductivity of dielectric.


Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)

Aluminum Nitride Nanopowder  silica gel compounded with Aluminum nitride nanoparticles, which has super thermal conductivity, gives very excellent thermal conductivity, electrical insulation, wider working temperature of electrical insulation (-60℃~-200℃), lower thickness and good operation performance, and can be widely used in the thermal transmission medium of electronic component to improve working efficiency, such as CPU radiator filler, high-power audion, controllable Silicon components, diode, thermal transmission medium in the seam and so on.


Dr. Hans Roelofs, Ph.D (National Technical University of Athens, Greece)

Aluminum Nitride Nanopowder  can largely improve the thermal conductivity of plastic. By adding Aluminum nitride nanoparticles to plastic according to the proportion of 5%~10% in mass, we can increase the thermal conductivity of plastic from 0.3W/(m˙k) to 0.5W/(m˙k), 16 times more. Compared with the heat conduction stuffing (alumina or magnesia) in the market, it can improve the mechanical properties of products with smaller amount. At present, related manufacturers have purchased Aluminum Nitride Nanopowder powders in mass and the new-type nano heat conduction plastic will be launched to market.


Aluminum Nitride Nanopowder

Aluminum Nitride Nanopowder
