Boron Carbide Nanopowder (B4C, APS: <90nm, Purity: 99.9%)

Boron Carbide Nanopowder

Product: Boron Carbide Nanopowder (B4C, APS: <90nm, Purity: 99.9%)

Quality Control: Each lot of NANOSHEL Boron Carbide Nanopowder was tested successfully.

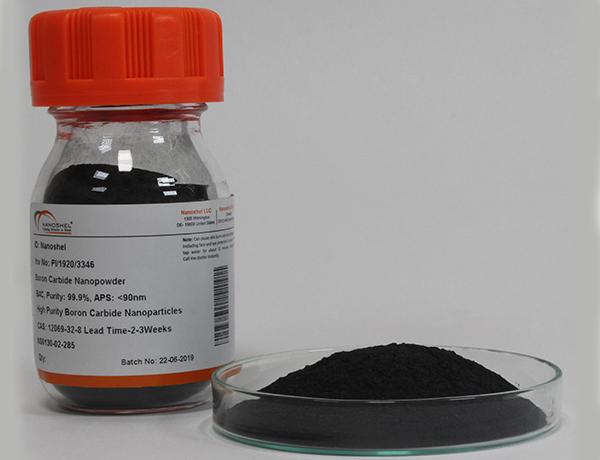

Boron Carbide Nanopowder

TEM – Boron Carbide Nanoparticles

Boron Carbide Nanoparticles - APS

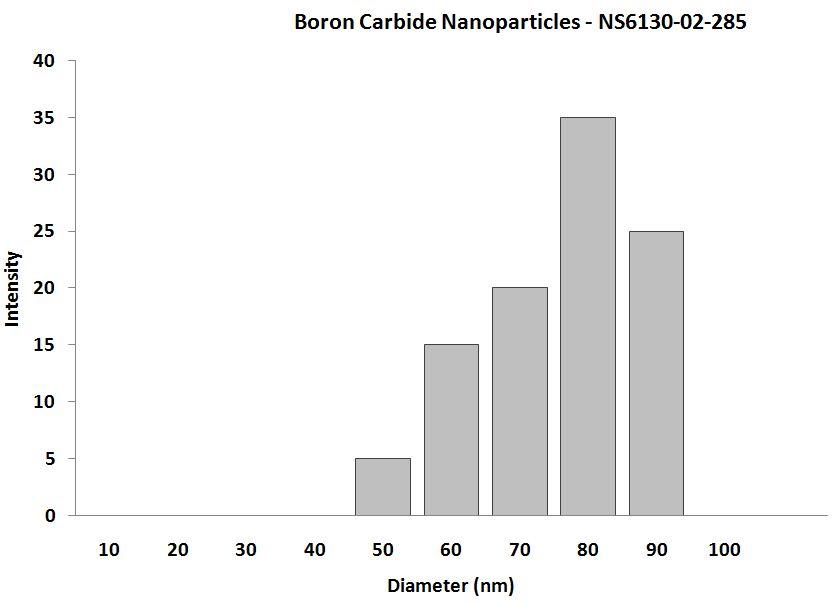

Boron Carbide Nanopowder – Size Analysis

Material Boron Carbide Nanopowder
Stock No NS6130-02-285
CAS 12069-32-8 Confirm
Purity 99.9% Confirm
APS <90nm Confirm
Appearance Ash black powder, No blocking Confirm
SSA 40-60 m²/g Confirm
Zeta Potential -26mV Confirm
Moisture <0.01% Confirm
Available Quantities 25Gms, 50Gms, 100Gms and larger quantities
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9 %
Boron 77.2 %
Carbide 22.3 %
Oxygen <0.1 %
Nitrogen <0.8 %
Nickel <0.01 %
Silicon <0.1 %

Experts Review:

58496396Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)
Boron Carbide
is a high performance abrasive material with chemical and physical properties similar to diamonds, such as, chemical resistance and hardness. Boron carbide’s extra hardness gives it the nickname “Black Diamond” (It ranks third after diamond and boron nitride) and is one of the leading grinding materials.


1252525Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
Boron carbide
nanopowder possesses high purity, narrow range particle size distribution, larger specific surface area. The melting point  of boron carbide nanopowder is up to 2350oC, boiling point higher than 3500℃ hardness up to 9.3, flexural strength ≥ 400Mpa. B4C nanoparticle does not react with acid and alkali solution. It has high chemical potential and is one of the most stable materials to acid.


2536582Dr. Huojin Chan (University of Science and Technology of China, Hefei, Anhui, China)
It has properties of anti-oxidation, high temperature resistant, high strength, high grinding efficiency, high hardness, high elastic modulus, high wear resistant, and good self-lubrication characteristics.


10604509_1459864657612760_2405225879143508610_oDr. Ms. Yi Yen Shi, (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)
Modern military equipment must be highly exile, rapid response and provide maximum safety. Ballistic protection is one such area. Boron carbide highest protection is one such area. Boron carbide highest protection levels at lowest possible weight. It have ballistic protection of aircraft. It also used for helicopter seats.


125448Dr. Hans Roelofs Ph.D (National Technical University of Athens, Greece)
We used boron carbide nanopowder for aircraft application to enchance durable, light weight and bllaistic protection of aircraft. We found very excellent desired results.


B4C Nanopowder

Boron Carbide Nanopowder
