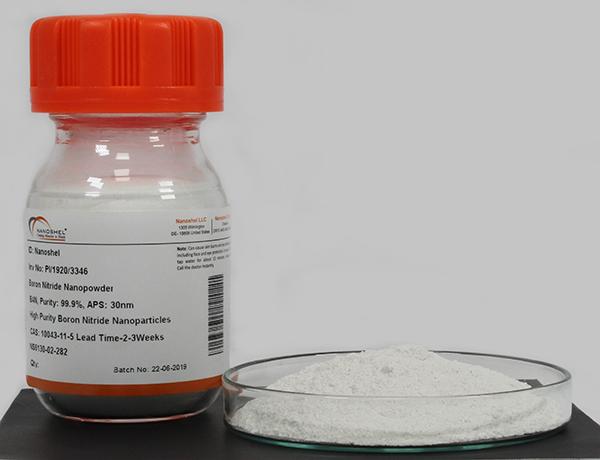

Boron Nitride Nanoparticles (B4N, APS: 30nm, Purity: 99.9%)

Boron Nitride Nanoparticles

Product: Boron Nitride Nanoparticles (B4N, 99.9%, 30nm)

Quality Control: Each lot of NANOSHEL Boron Nitride Nanoparticles was tested successfully.

Boron Nitride Nanoparticles

Boron Nitride Nanoparticles – SEM

Boron Nitride Nanoparticles - Size Analysis

Boron Nitride Nanoparticles – Size Analysis

Product Name Nano Boron Nitride Nanoparticles
Product Code NS6130-02-282 Confirm
CAS 10043-11-5 Confirm
APS 30nm Confirm
Purity 99.9 % Confirm
Crystal Form BN, Hexagonal Confirm
Density 2.29 g/cm³ Confirm
Refractive Index 1.74 Conform
Coefficient of Friction <0.3 Confirm
Dielectric Constant 3-4 Confirm
Thermal Conductivity 40-120 Confirm
mV 30 Confirm
Tap Density 0.4 g/cm³ Confirm
SSA (BET) 50 Confirm
Available Quantities 25Gms, 50Gms, 100Gms and larger quantities
Main Inspect Verifier Manager QC
Typical Chemical Analysis

BN 99.8 %
Fe2O3 <0.03 %
CaO <0.002 %
MgO <0.04 %
B2O3 <0.1%

Experts Review:

58496396Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)
Boron Nitride Nanoparticles is a chemical compound in which its chemical formula BN consists of equal numbers of boron and nitrogen atoms. The hardness of Boron nitride is inferior only to diamond. Because of excellent thermal and chemical stability, Boron Nitride is widely used in mechanical applications.


1252525Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
Boron Nitride Nanoparticles properties are high thermal conductivity, low thermal expansion, good thermal, shock resistance, low resistance, high electrical resistance, low dielectric constant and non toxicity. BN nanostructures are expected to be useful as electronic devices, field-effect transistors, high heat-resistant semiconductors, insulator lubricants, nanowires, magnetic nanoparticles and gas storage materials.


2536582Dr. Huojin Chan (University of Science and Technology of China, Hefei, Anhui, China)
Boron Nitride Nanoparticles (hBN) is also known as ‘White Graphite’, has similar (hexagonal) crystal structure as of Graphite. (h-BN) is a wide band-gap material with outstanding mechanical, electrical and optical properties. It consists of a layered structure that is very similar to graphite.


10604509_1459864657612760_2405225879143508610_oDr. Ms. Yi Yen Shi, (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)
Boron Nitride Nanoparticles is widely used to reduce friction in industrial applications, but it has only recently been adapted to bullets. The “latest and greatest” bullet-coating material, hBN is ultra-slippery, goes on clear, and will not combine with moisture or potentially harm barrel steel. hBN also can withstand extremely high temps (1000° C). hBN will become the preferred dry lubricant for bullet-coating.


125448Dr. Hans Roelofs Ph.D (National Technical University of Athens, Greece)
We used Boron Nitride Nanoparticles for nuclear powder applications to for electrical insulation and high thermal conductivity. Fortunately we found very excellent desired results.


Boron Nitride Nanoparticles

Boron Nitride Nanoparticles
