Cadmium Selenide Semiconductor Nanopowder

(CdSe, Purity: 99.9%, APS: 40-80nm)

Available Pack Size: 10Gms, 25Gms, 50Gms, 100Gms, 250Gms, 500Gms, 1Kg & Bulk orders
SEM - CdSe Nanoparticles

SEM - CdSe Nanoparticles

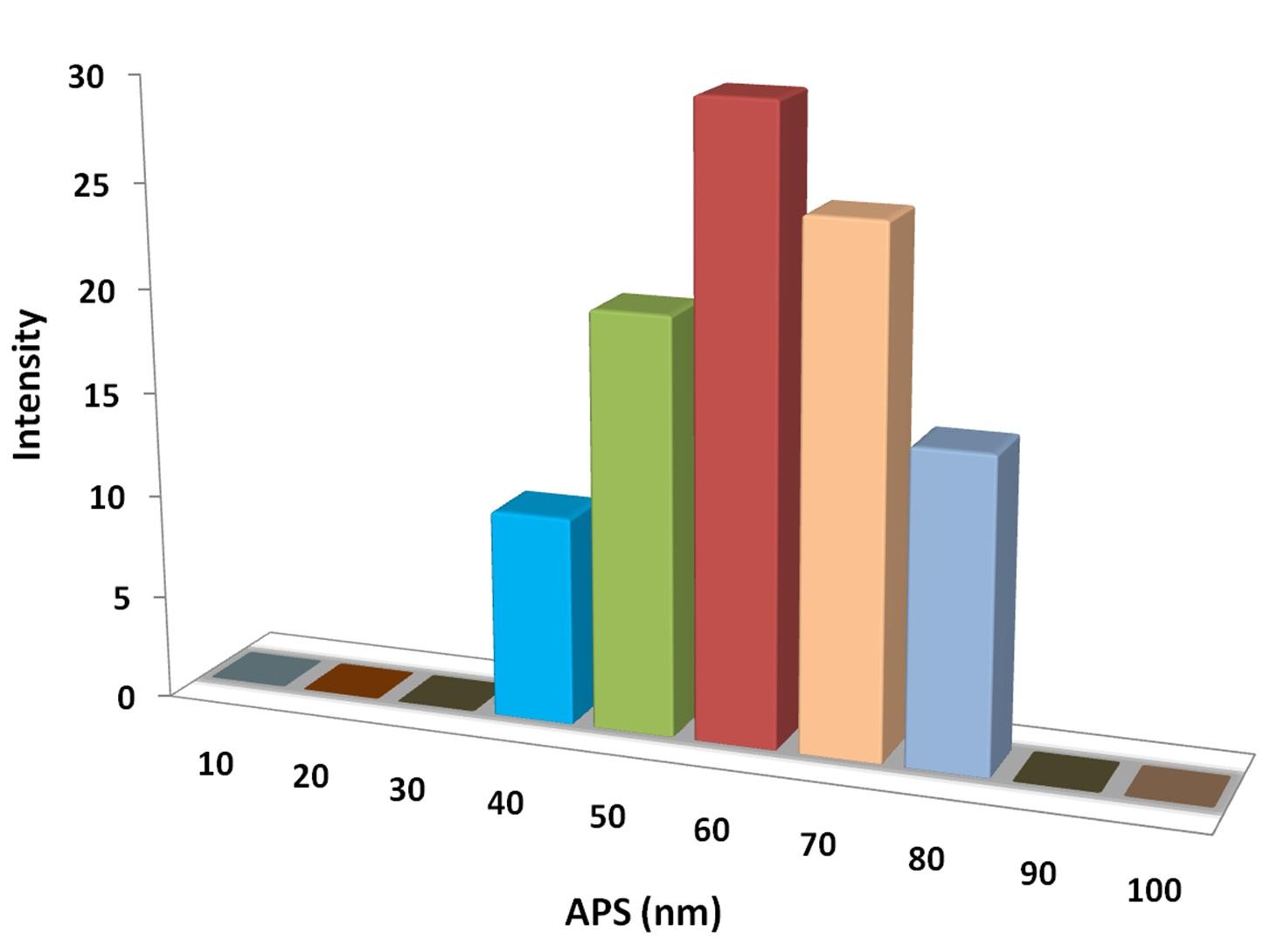

Particles Size Analysis

Particles Size Analysis

Cadmium Selenide

Cadmium Selenide


Product Cadmium Selenide Semiconductor Nanoparticles
Stock No. NS6130-02-256
CAS 1306-24-7 Confirm
APS 40-80nm Confirm
Purity 99.9 % Confirm
Molecular Formula CdSe Confirm
Molecular Weight 191.39 g/mol Confirm
Form Powder Confirm
Color Light Gray/Black Confirm
Density 5.81 g/cm³ Confirm
Melting Point 1268 °C Confirm
Quality Control Each lot of Cadmium Selenide Semiconductor Nanoparticles was tested successfully.
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%
Other Metal 900ppm

Expert Reviews

Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)

Cadmium selenide semiconductor nanopowder is an inorganic compound with the formula CdSe. That is classified as II-VIsemicondutor of the n-type. CdSe-derived nanoparticles with sizes below 10 nm manifest a property known as quantum confinement. Quantum confinement defines when the electrons in a material are confined to a very small volume. Quantum confinement is size-dependent phenomenon. It means the properties of CdSe nanoparticles are tunable based on their size. Crystal structure of CdSe is available in three forms such as Wurtzite(hexagonal), sphalerite(cubic), rock salt(cubic).


Dr. Huojin Chan,  (University of Science and Technology of China, Hefei, Anhui, China)

Cadmium selenide is a semiconducting material. However, it has yet to find many applications in manufacturing. This material is transparent to infra-red (IR) light and has seen limited use in windows for instruments utilizing IR light. CdSe nanoparticles have received a lot of attention because of their unique optical and electronic properties. This nanopowder can be utilized as an efficient electron acceptor in the composites with various conjugated polymers. Because of its high photosensitivity, it has been employed as a photoconductive device.


Dr. Ms. Yi Yen Shi,  (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

Cadmium selenide semiconductor nanopowder is used in optoelectronic devices, laser diodes, nanosensing, and biomedical imaging. This powder is also utilized in high-efficiency solar cells. These nanocrystals possess characteristics that make them attractive for optoelectronic applications, for instance, light-emitting diodes (LEDs), solar cells and biological markers.


Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)

The fluorescence spectrum is size dependent on the CdSe nanoparticles. So this property can be used by engineers. Engineers are able to manufacture laser diodes that cover a large part of the electromagnetic spectrum by using the size-dependent fluorescence spectrum. Doctors are instigating these materials for use in biomedical imaging applications. Human tissue is permeable to far infra-red light. By injecting appropriately prepared CdSe nanoparticles into injured tissue, it may be possible to image the tissue in those injured areas


Cadmium Selenide Semiconductor Nanopowder

Cadmium Selenide Semiconductor Nanopowder


Note
*Exchanges of materials/products are not permitted. Nanoshel does not offer refunds.
*US Dollar Cheques Not Accepted, Only Bank TT/Credit Cards Accepted
