CALCIUM FLUORIDE (CaF2, Purity: 99.9%)

High Purity CALCIUM FLUORIDE

Product CALCIUM FLUORIDE (CaF2, Purity: 99.9%)

Quality Control: Each lot of CALCIUM FLUORIDE was tested successfully.

Calcium Fluoride

SEM Analysis of Calcium fluoride

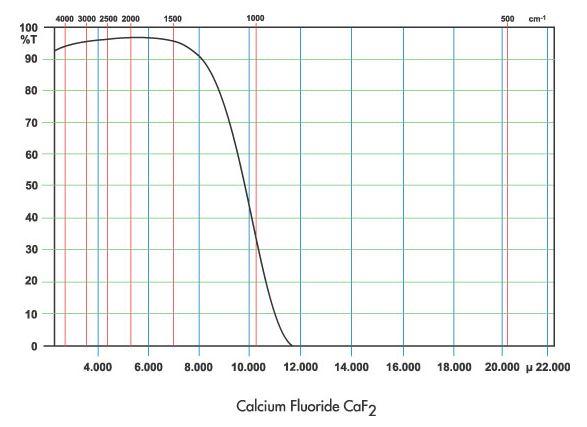

Calcium Fluoride UV-IR Spectra

UV/VIR Spectra of Calcium fluoride

Product Name Calcium Fluoride
Stock No NS6130-12-000262
CAS 7789-75-5 Confirm
APS 10 microns Confirm
Purity 99.9% Confirm
Appearance White Crystalline Powder Confirm
Density 3.18 g/cm³ Confirm
Molecular Weight 78.07 g/mol Confirm
Crystallographic Structure Cubic Crystal Confirm
Melting Point 1418 °C Confirm
Boiling Point 2533 °C Confirm
Solubility Acetone, Acide, Water Confirm
Solubility in Water 0.0016 g/100 mL (20°C) Confirm
Available Quantities 25Gms, 50Gms, 100Gms and larger quantities
Main Inspect Verifier Manager QC

Typical Chemical Analysis

CaF2 > 90 %
CaCO3 < 4 %
Fe2O3 < 0.03 %
Al2O3 < 0.2 %
SiO2 < 5 %
S < 0.05 %
P < 0.05

Experts Review:

58496396Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)
Calcium fluoride is the inorganic compound with the formula CaF2. It is a colourless insoluble solid. Synthetic calcium fluoride from Solvay guarantees uniformly high quality through the most careful selection of raw materials and extremely small manufacturing tolerances. Synthetic calcium fluoride from Solvay increases the comfort properties of the friction lining in the high temperature region (430 to 820°C); wear on the brake pads caused by adhesive abrasion is considerably reduced and the stability of the braking system is markedly increased Synthetic calcium fluoride from Solvay ensures that the friction materials have extremely high thermal stability.


1252525Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
Synthetic calcium fluoride from Solvay improves depending on the composition thermal conductivity and reduces the formation of hot spots – thus prolonging the lifetime of the brake material. Synthetic calcium fluoride from Solvay is environmentally compatible – for example because of its minimal heavy metal content compared to natural fluorspar minerals. This property is especially important when braking large masses and high speeds, e.g. high-speed trains or during aircraft landings


2536582Dr. Huojin Chan (University of Science and Technology of China, Hefei, Anhui, China)
Synthetic calcium fluoride from Solvay ensures more enjoyment when driving – by a marked reduction in noise through squeak-free braking . Calcium fluoride (CaF2) is used in aluminum-metallurgy, brake lining, glass manufacturing, enamel and glazing frits production, and the production of welding agents.


10604509_1459864657612760_2405225879143508610_oDr. Ms. Yi Yen Shi, (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)
Calcium fluoride is useful in the production of lenses and prisms in the application of ultraviolet and infrared wavelengths. Because it is a hard material that is stable, it results in products that are durable and resistant. In another use, synthetic calcium fluoride is used in manufacturing of break pads because it helps reduce abrasion caused by high heat and friction.


125448Dr. Hans Roelofs Ph.D (National Technical University of Athens, Greece)
The most commonly used fluoride in toothpaste, calcium fluoride is a mineral with the chemical formula CaF2. Calcium fluoride occurs as isometric crystals in nature and is also known as fluorite. Although it is sometimes used to add fluoride to drinking water and in some dental applications, it is mostly used in steel, glass and ceramic industries.


Calcium Fluoride Nanopowder

Calcium Fluoride Nanopowder

This material ships as dry granules or powder. Each grade contains particles with an average thickness and surface area. All dimensions represent median sizes and there is a distribution around the mean. Calcium Fluoride by Nanoshel.
