CARBON Conductive Ink Paste (APS: <80nm, Purity: 99.9%)

Nano Powder – High Purity Carbon Conductive Ink Paste

Product: Carbon Conductive Ink Paste

Quality Control: Each lot of NANOSHEL Carbon Conductive Ink Paste (C, 99.9%, <80nm) was tested successfully.

Carbon Conductive Ink Paste

Carbon Conductive Paste – SEM

Carbon Conductive Ink Paste

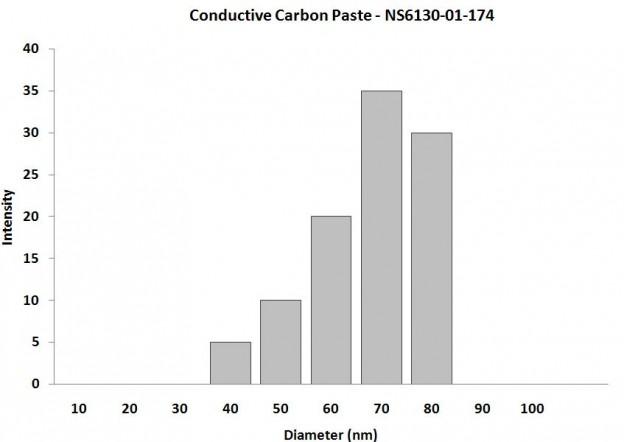

Carbon Conductive Ink Paste – Size Analysis

Material Carbon Conductive Ink Paste
Stock No. NS6130-01-174
CAS 7440-44-0 Confirm
APS <80nm Confirm
Purity 99.9% Confirm
Color Black Confirm
Odor Odorless Confirm
Density 1.38 g/mL @25°C Confirm
Viscosity Paste-like Confirm
Pour Point ≥ -34°C Confirm
Fire Point ~300°C Confirm
Flash Point > 290°C Confirm
Lubricant Yes (if above -23 °C) Confirm
Bleed Resistant Yes Confirm
Run Resistant Yes Confirm
Corrosive No Confirm
Volume Resistivity 82 Ω•cm Confirm
Volume Conductivity 0.012 S/cm Confirm
Surface Resistivity 271 Ω/sq Confirm
Surface Conductivity 0.037 S/sq Confirm
Service Temperature -45 to +175 °C (-49 to +347 °F) Confirm
Maximum Withstand Temperature +210 °C [+410 °F] Confirm
 Storage Temperature Limits -40 to +40°C (-40 to +104°F) Confirm
Maximum Coverage for 25 mm (1.0 mil) thickness <11,400 cm² (<12 ft2) Confirm
Shelf Life 6 months Confirm
Available Quantities 25Gms, 50Gms, 100Gms and larger quantities
Main Inspect Verifier Manager QC

 Experts Review:

download

Jules L. Routbort (Argonne National Laboratory, Argonne, USA)
Carbon (atomic symbol: C, atomic number: 6) is a Block P, Period 2, nonmetallic element. It is the sixth most abundantly available element in the universe, and is commonly obtained from coal deposits. Carbon is at the same time one of the softest (graphite) and hardest (diamond) materials found in nature.

Dr. Ms. Kamiko Chang, Ph.D(University of Science and Technology Beijing, China)
Carbon inks are lubricious, providing low friction and excellent thermal stability. They are also chemically inert, with low reactivity to solvents and other chemicals. Carbon inks can be applied by screen-printing, dipping, and syringe dispensing and feature excellent adhesion glass and a variety of other substrates. Unlike conventional conductive materials, carbon inks are very resistant to abrasion, scratching, flexing and creasing.

images (12) Dr. Nicholaos G. Demas (Newcastle University School Of Machanical & Systems Engg. UK)
Carbon inks can be applied screen printing, gravure printing, flexographic printing, spraying, dipping, or coating. All conductive compounds carbon inks are heat dried. Carbon inks are frequently used in the appliance, medical, automotive, aerospace, and electronics industries.

images Takeo Oku (Department of Materials Science, The University of Shiga Prefecture, Hassaka 2500, Hikone, Shiga 522-8533, Japan)
Application of conductive carbon inks for inkjet printing technology. Conductive Carbon Ink for inkjet printing technology combines carbon nanotube inks with other additives, such as metallic nanoparticles, for use in standard inkjet printing.

kritter Dr. Ms. Guixin (Susan), Ph.D (Switzerland-Institute for Inorganic Chemistry, Zurich, Switzerland)
We used conductive carbon ink for screen printing applications to enhance the conductive strength.  Fortunately we found very excellent desired results.

carbon conductive ink paste

carbon conductive ink paste
