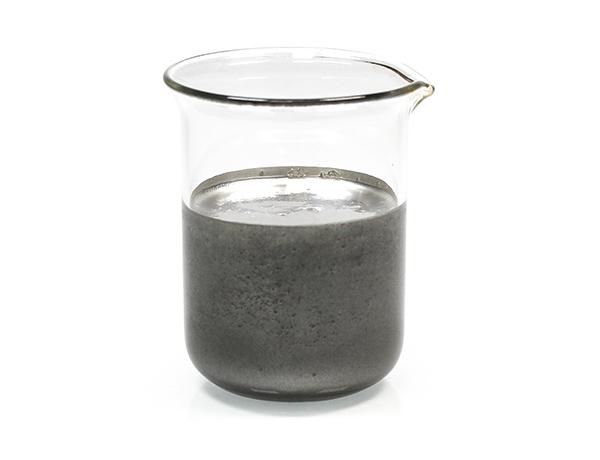

Conductive SILVER Paste (Ag, APS: 80-100nm, Purity: 99.9%)

Conductive Silver Paste

Product: Conductive Silver Paste (Ag, APS: 80-100nm, Purity: 99.9%)

Quality Control: Each lot of NANOSHEL Conductive Silver Paste was tested successfully.

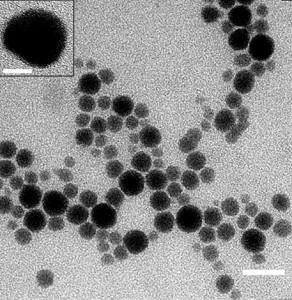

Conductive Silver Paste- SEM

Conductive Silver Paste- SEM

Conductive Silver Paste - Size Analysis

Conductive Silver Paste – Size Analysis

Material Conductive Silver Paste
Stock No NS6130-01-160
CAS No 7440-22-4 Confirm
APS 80-100nm Confirm
Color Silver Gray Confirm
Viscosity ±12,000 cps Confirm
Coverage 210 sqft per kg <0.5 mm thickness Confirm
Sheet resistance 2.0 ohms / sq inch Confirm
Track resistance < 2.0 ohms in [2mm width X 1”X 0.5] Confirm
Screen wash methyl ethyl ketone Confirm
Max service temp 150 °C Confirm
Consistency Screen able paste. High residence on screen Confirm
Adhesion Non Scratch able Confirm
Screen mesh T 140s [imported] Confirm
Screen squeezer use solvent resist squeezer Confirm
Curing time 120ºc for 30 minutes, 130ºc for 15 to 30 minutes, 140ºc for 5 to 10 minutes Confirm
Dilution ready to use. If dilution requires, add 2% of ECA by volume ( little by little ) Confirm
Storage avoid heat exposure & sunlight. keep in a cool place, do not freeze. Confirm
Usage mix the content well before use. Confirm
Available Quantities 25Gms, 50Gms, 100Gms and larger quantities
Main Inspect Verifier Manager QC

 Experts Review:

download

Jules L. Routbort (Argonne National Laboratory, Argonne, USA)
Conductive Silver Paste
 is getting great attention due to their application in electrical fileds such as the fabrication of Conductive Silver Paste used in solar cell metallization. Conductive properties silver paste of thick films of solar cell. Solar cell is based on the compatibility of the silver paste with structure of the semiconductor materials.


Dr. Ms. Kamiko Chang, Ph.D(University of Science and Technology Beijing, China)
Conductive Silver Paste
Solar Cell is based on the compatibility of the silver paste with base structure of the semiconductor materials. The properties of the silver paste like viscosity, density, electrical conductivity, adhesion properties, organic compounds and curing of the solar cell.


images (12) Dr. Nicholaos G. Demas (Newcastle University School Of Machanical & Systems Engg. UK)
Conductive Silver Paste unique properties of high surface to volume ratio of nano size effects. The fabricated from the conventional silver paste containing single micron silver particles. The used of silver nano particles in the silver paste for highest efficiency of polycrystalline solar cell.


images Takeo Oku (Department of Materials Science, The University of Shiga Prefecture, Hassaka 2500, Hikone, Shiga 522-8533, Japan)
Conductive Silver Paste
 attachment for the most important in packing of power semiconductor devices. Silver has been widely used in micro electronics. The properties including electrical conductivity, thermal conductivity, interfacial thermal resistance of silver paste.


Conductive Silver Paste

Conductive Silver Paste
