Copper Foil (Cu, Purity: >99.8%, APS: <12μm)

High Purity Copper Foil

Product: Copper Foil (Cu, Purity: >99.8%, APS: <12μm)

Quality Control: Each lot of NANOSHEL Copper Foil was tested successfully.

copper

copper



Materials Copper Foil
Stock No NS6130-12-000329
CAS 7440-50-8 Confirm
Purity ≥99.8% Confirm
APS 12µm Confirm
Surface density 105-110g/m² Confirm
Tensile strength ≥25 Kg/mm² Confirm
Extensibility ≥2.5% (25°C %) Confirm
Roughness Rz ≤3.0 μm Confirm
Thickness tolerance -0, +3 Confirm
Width tolerance ±1 Confirm
Tolerance oxidation susceptibility 160°C/10 min. no oxidation Confirm
Joint 1pcs/roll Confirm
Quality guarantee period 90day from shipping Confirm
Roll weight Consulted by supplier and acquirer Confirm
Polished One Side Polished & One Side Coarse Confirm
Appearance quality No oxidation, smooth and no concave-convex Confirm
Storage requirement Temp:25 °C, Humidity:≤60%RH , There are no corrosive gas and Material, Moist Material

Typical Chemical Analysis – %

Assay ≥ 99.9%
Fe ≤ 0.005
Bi ≤ 0.001
Sb ≤ 0.002
As ≤ 0.002
Sn ≤ 0.002
Ni ≤ 0.005
Zn ≤ 0.005
O ≤ 0.06
Pb ≤ 0.005
S ≤ 0.005

Experts Review:

58496396Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)
Metal- Foil based nanotechnology could enable large scale production of lighter, cheaper, and environmentally friendly deep UV LED. Metal foils attract a large field of applications, e.g. in micro-technology they are being used for sensors, actors, micro-electro-mechanical systems and in medical devices. Stainless steels, FeNi alloys, Nickel and Nickel based alloys, Copper as well Aluminium are the principal materials for our metal foils.


1252525Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
A foil is a very thin sheet of metal, usually made by hammering or rolling. Foils are most easily made with malleable metals, such as aluminium, copper, tin, and gold. Characteristics of metal-foils include- high permeability, low coercivity, specific electrical resistance, corrosion resistance, linear coefficient of thermal expansion, etc.


2536582Dr. Huojin Chan (University of Science and Technology of China, Hefei, Anhui, China)
Foils usually bend under their own weight and can be torn easily. The more malleable a metal, the thinner foil can be made with it. Foil is commonly used in household applications. It is also useful in survival situations, because the reflective surface reduces the degree of hypothermia caused by thermal radiation.


Lithium Ion Battery Materials

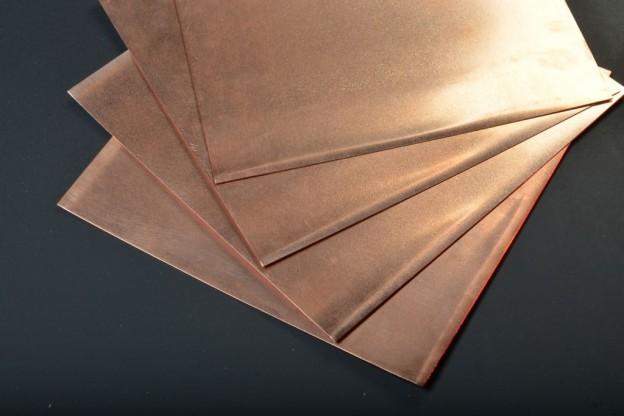

Copper Foil Sheets

This material ships as dry granules or powder. Each grade contains particles with an average thickness and surface area. All dimensions represent median sizes and there is a distribution around the mean. Copper Foil Sheets by Nanoshel.
