High Purity Copper Foils

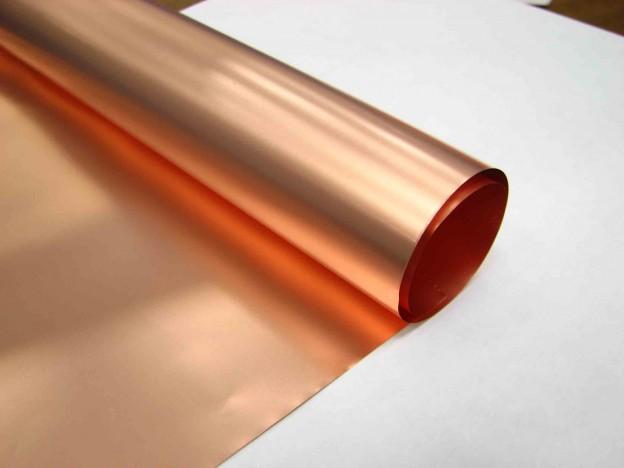

Product: Copper Foils (Cu, Purity: >99.8%, Thickness: 10μm)
Quality Control: Each lot of NANOSHEL Copper Foils was tested successfully.
|Surface density||95-100 g/m²||Confirm|
|Tensile strength||≥25 (25 °C) Kg/mm²||Confirm|
|Roughness Rz||≤3.0 μm||Confirm|
|Thickness tolerance||-0, +3||Confirm|
|Tolerance oxidation susceptibility||160°C/10 min.no oxidation||Confirm|
|Quality Guarantee Period||90day from shipping||Confirm|
|Roll weight||Consulted by supplier and acquirer||Confirm|
|Polished||One Side Coarse & One Side Polished||Confirm|
|Appearance quality||No oxidation, smooth and no concave-convex||Confirm|
|Storage requirement||Temp：25°C，humidity：≤60%RH, There are no corrosive gas and material，Moist material.|
Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)
Metal- Foil based nanotechnology could enable large scale production of lighter, cheaper, and environmentally friendly deep UV LED. Metal foils attract a large field of applications, e.g. in micro-technology they are being used for sensors, actors, micro-electro-mechanical systems and in medical devices. Stainless steels, FeNi alloys, Nickel and Nickel based alloys, Copper as well Aluminium are the principal materials for our metal foils.
Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
A foil is a very thin sheet of metal, usually made by hammering or rolling. Foils are most easily made with malleable metals, such as aluminium, copper, tin, and gold. Characteristics of metal-foils include- high permeability, low coercivity, specific electrical resistance, corrosion resistance, linear coefficient of thermal expansion, etc.
Dr. Huojin Chan (University of Science and Technology of China, Hefei, Anhui, China)
Foils usually bend under their own weight and can be torn easily. The more malleable a metal, the thinner foil can be made with it. Foil is commonly used in household applications. It is also useful in survival situations, because the reflective surface reduces the degree of hypothermia caused by thermal radiation.
This material ships as dry granules or powder. Each grade contains particles with an average thickness and surface area. All dimensions represent median sizes and there is a distribution around the mean. Copper Foils by Nanoshel.
