Home » GaN Wafer (Gallium Nitride, Si-Doped, N type, Purity: >99.9%, Diameter: 2")
SINGLE CRYSTAL SUBSTRATES
| Stock No. | CAS | MSDS | Specification | COA |
|---|---|---|---|---|
| NS6130-10-1263 | 25617-97-4 |
|
|
GaN Wafer

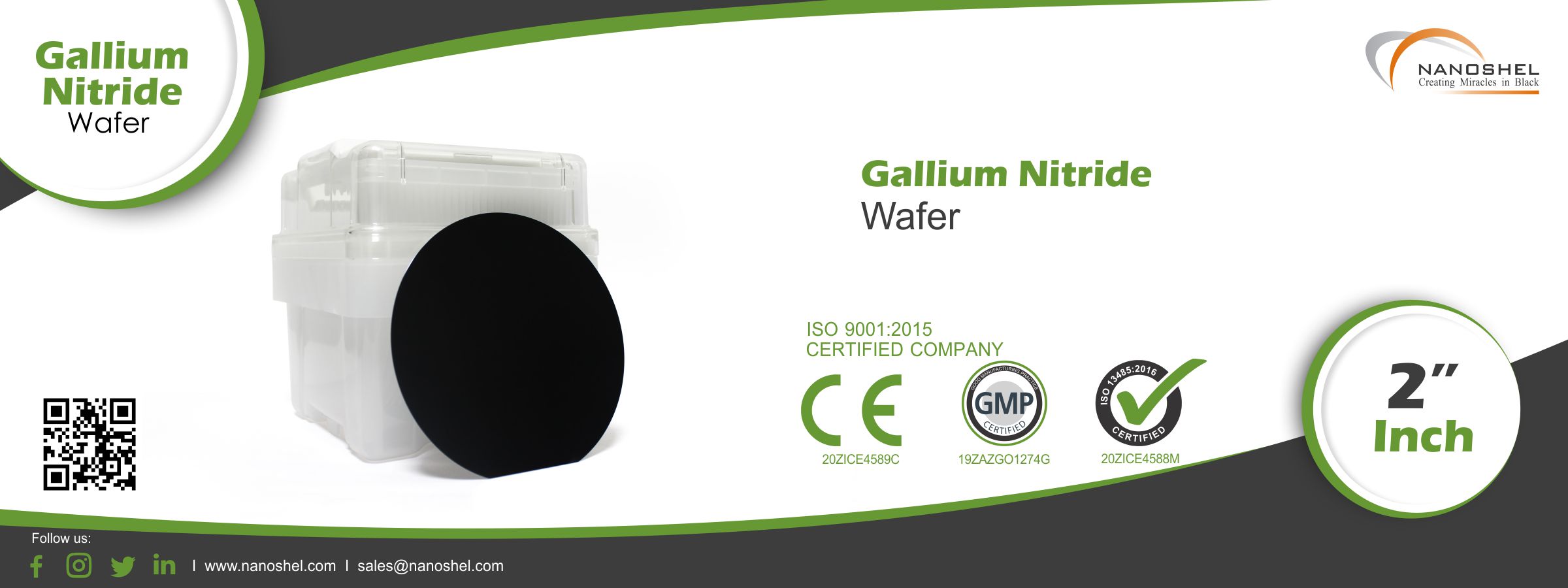

Product : GaN Wafer (Gallium Nitride, Si-Doped, N type, Purity: >99.9%, Diameter: 2")
NS1263
| Product | GaN Wafer on Sapphire | |
| Stock No | NS6130-10-1263 | |
| CAS | 25617-97-4 | Confirm |
| Purity | >99.9% | Confirm |
| Thickness | 4 µm ± 1µm | Confirm |
| Orientation | C-axis (001) ±1.0o | Confirm |
| Resistivity(300K) | <0.5 Ωcm | Confirm |
| Dislocation Density | <1x10^8 cm־² | Confirm |
| Polish | Single Side Polished | Confirm |
| Quality Control | Each lot of GaN Wafer on Sapphire was tested successfully. | |
| Main Inspect Verifier | Manager QC | |
Expert Reviews
Dr. Ms. Teresa B. , (University of San Carlos, Philippines)
Single Crystal substrates has a unique combination of physical, chemical and optical properties allowing it to withstand high temperatures, high pressures, thermal stock and water or soil erosion. It is chemically inert with a low friction coefficient and excellent electrical, optical and dielectric characteristics.
Dr. Stew Dean Ph.D , (University of Technology Sydney, Australia)
Single crystal substrateshas been widely used as substrate material for the deposition of high quality oxide thin films, including semiconducting, superconducting, dielectric, ferroelectric, and ferromagnetic oxides. The quality of the oxide films is strongly correlated to the quality of the substrate.
Dr. Ms. Yi Yen Shi,, (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)
The anistropicproperties of crystals depends on the orientation of crystals and lead to a wide range of applications in research and development. Crystal substrates has hexagonal/rhombohedral structure. For epitaxial growth of films, different orientations will offer a range of lattice constants to match the epi material.
Dr. Myron Rubenstein,, Ph.D (Polytechnic University of Turin, Italy)
Single crystal substrates are of three types: C-plane, A-plane, R-plane.
C-plane substrates are used to grow III-V and II-VI compounds such as GaN for blue LED and laser diodes. A-plane substrate provide a uniform dielectric constant and high insulation for hybrid microelectronics applications. R-plane substrates are used for the hetero-epitaxial deposition of silicon for microelectronic IC applications.
GaN Wafer
From us, you can easily purchase GaN Wafer at great prices. Place online order and we will dispatch your order through DHL, FedEx, UPS. You can also request for a quote by mailing us at sales@nanoshel.com. We invite you to contact us for further information about our company and our capabilities. At Nanoshel, we could be glad to be of service to you. We look forward to your suggestions and feedback.
+1 646 470 4911
Europe (West) - General Enquiries:+44 1782 454144, +44 (0) 74 105 48802
Europe (East) - Sales/Research:+36 30 4750555
India - Sales/Research:+91-9779550077
Note *Exchanges of materials/products are not permitted. Nanoshel does not offer refunds. *US Dollar Cheques Not Accepted, Only Bank TT/Credit Cards Accepted
Ask Nanoshel
Please feel free to
send us your
requirement
about our products
search
Search by Product, Stock No and CAS
Dr. Clive Patterson Ph.D , (Moscow Institute of Physics and Technology, Russia)
A single Crystal is a material in which the crystal lattice of the entire sample is continuous and unbroken to the edges of the sample, with no grain boundaries. The absence of the defects associated with grain boundaries can give single crystals unique properties, particularly optical, electrical, and mechanical. These properties, in addition to making them precious in some gems, are industrially used in technological applications, specially in optics and electronics.
