Graphite Nanoplatelets (Purity: 99.9%, APS: 3-4nm)

Graphite Nanoplatelets

Product: Graphite Nanoplatelets (Purity: 99.9%, APS: 3-4nm)

Quality Control: Each lot of Graphite Nanoplatelets was tested successfully.

TEM - Graphite Nanoplatelets

TEM - Graphite Nanoplatelets

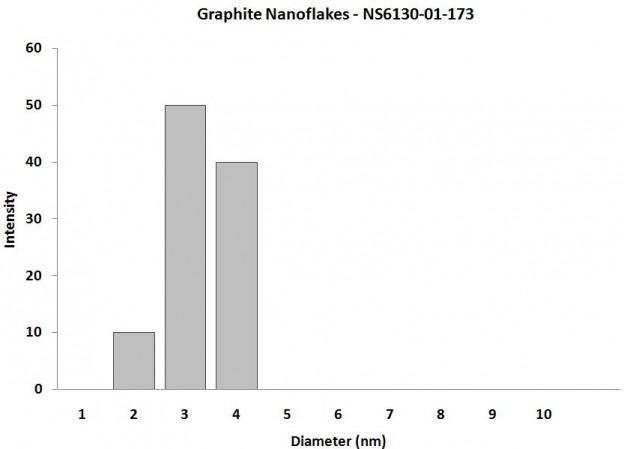

Particles Size Analysis - Graphite Nanoplatelets

Particles Size Analysis - Graphite Nanoplatelets


Product Graphite Nanoplatelets
Stock No NS6130-01-173
CAS 7782-42-5 Confirm
Purity 99.9% Confirm
APS 3-4 nm Confirm
Molecular Weight 12.01 g/mol Confirm
Form Powder Confirm
Color Black Confirm
Density 1.8 g/cm³ Confirm
Melting Point 3550 °C Confirm
Boiling Point 4027 °C Confirm
Young's Modulus 21 GPa Confirm
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%
Quartz + silica < 0.1 %
H2O ~0.2 %
Ash < 0.5 %
Other Metal < 0.1 %

Expert Reviews

Jules L. Routbort, (Argonne National Laboratory, Argonne, USA)

Graphite nanoplatelets, which combine the layered structure and low price of nanoclays with the superior mechanical, electrical, and thermal properties of carbon nanotubes, are very cost-effective, and can simultaneously provide a multitude of physical and chemical property enhancements.


Dr. Ms. Kamiko Chang, Ph.D, (University of Science and Technology Beijing, China)

Graphite nanoplatelets particles consist of small stacks of graphene obtained by exfoliation of expanded graphite. The size and morphology of nanoplatelets makes these particles especially effective at providing barrier properties, while their graphene structure makes them excellent thermal and electrical conductors.Unlike many other additives, graphite nanoplateletes improve mechanical properties like stiffness, strength, and surface hardness of the matrix material.


Dr. Nicholaos G. Demas, (Newcastle University School Of Machanical & Systems Engg. UK)

Graphite nanoplatelets improves mechanical properties of most composites, particularly stiffness and tensile strength. Elastomeric compounds have been shown to experience increased life and reduced surface wear when reinforced with graphite nanoplatelets. Particles can be aligned using electric field, although alignment is not necessary for use in most extrusion systems.


Takeo Oku, (Department of Materials Science, The University of Shiga Prefecture, Hassaka 2500, Hikone, Shiga 522-8533, Japan)

Graphite nanoplatelets can also be combined with glass fibers or other matrix materials to provide sufficient conductivity for electrostatic painting or other applications requiring electrical conductivity. Graphite nanoplatelets has a percolation threshold for conductivity of 1.9 wt% in thermoplastic matrix. At densities of 2–5 wt%, conductivity reaches sufficient levels to provide electromagnetic shielding.


Dr. Ms. Guixin (Susan), Ph.D, (Switzerland-Institute for Inorganic Chemistry, Zurich, Switzerland)

Graphite nanoplatelets consist of small stacks of graphene that can replace carbon fiber, carbon nanotubes, nano-clays, or other compounds in many composite applications. When they are added at 2-5wt% to plastics or resins they make these materials electrically or thermally conductive and less permeable to gasses, while simultaneously improving mechanical properties like strength, stiffness, or surface toughness.


Graphite nanoplatelets

Graphite nanoplatelets
