Home » Graphite Synthetic Sheet (C, Thickness: 0.017mm)

PYROLITIC GRAPHITE

Stock No. CAS MSDS Specification COA
NS6130-10-1291 7782-42-5 MSDS pdf Specification pdf

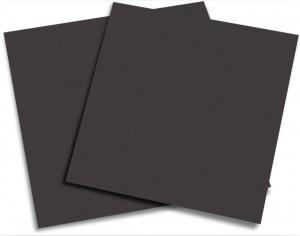

Graphite Synthetic Sheet

Graphite Synthetic Sheet (C, Thickness: 0.017mm)

NS1291

Graphite Synthetic Sheet

Graphite Synthetic Sheet


Product Graphite Synthetic Sheet
Stock No NS6130-10-1291
CAS No 7782-42-5 Confirm
Thickness 0.017 mm Confirm
Color Dark Grey Confirm
Thickness Tolerance ±0.005 mm Confirm
Density 2.3 g/cm³ Confirm
Tensile Strength 39 mpa (X-Y Direction) Confirm
Composition Synthetic Graphite Confirm
UL Flammability 94VO Confirm
Temperature Range -40°C to 400°C Confirm
Thermal Conductivity 1500 -1800 w/m.k (X-Y axis) Confirm
Thermal Conductivity 15-20 w/m.k (Z Axis) Confirm
Thermal Resistance 0.02 °C –in2/w Confirm
Volume Resistivity 11×10-4Ω-cm Confirm
Conductivity 2.0 x 10 (6) s/m Confirm
Specific heat ratio (50°C 0.85 (J/g.K) Confirm
Bending Test (Times) >10000 (R5/180 degree C) Confirm
Quality Control Each lot of Graphite Synthetic Sheet was tested successfully.
Main Inspect Verifier Manager QC

Expert Reviews

erence Mitchell, PhD,, (ICAI School of Engineering Madrid, Spain)

Graphite Synthetic Sheet product that is formed using select acid treated natural graphite, which is then compressed after undergoing high temperature expansion. Only natural graphite is used as a raw material, which yields highly flexible carbon with excellent heat resistance and chemical resistance. Other features include a high compressibility recovery rate, excellent air tightness, and a high thermal conductivity.


Dr. Steven Atkinson,Professor, (University of Nottingham,UK)

Graphite Synthetic Sheet has flexibility and high recovery from compressive stress, which previously unobtainable with existing graphite products. Good matching with counter materials, which make it ideal for use as a sealing material. Thermal and electrical conductivity are excellent parallel to surface as a heat transfer material.


Dr. Marco Ferro,MD PhD, (University of Nordland Bodø, Norway)

Graphite Synthetic Sheet its name from the Greek word “graphein”, to write. The material is generally greyish-black, opaque and has a lustrous black sheen.  It is unique in that it has properties of both a metal and a non-metal.  It is flexible but not elastic, has a high thermal and electrical conductivity, and is highly refractory and chemically inert.


Graphite Synthetic Sheet

Graphite Synthetic Sheet
