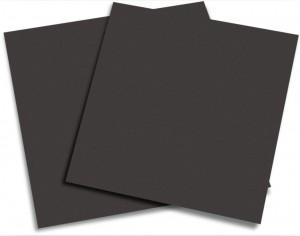

Highly Ordered Pyrolytic Graphite Sheet (HOPG, Size : 10×10 mm, Thickness : 1 mm)

Highly Ordered Pyrolytic Graphite

Product: Highly Ordered Pyrolytic Graphite Sheet (HOPG, Size : 10×10 mm, Thickness : 1 mm)

Quality Control: Each lot of NANOSHEL Highly Ordered Pyrolytic Graphite was tested successfully.

Product	Highly Ordered Pyrolytic Graphite
Stock No.	NS6130-10-1106
CAS	7440-44-0	Confirm
Size	10×10mm	Confirm
Thickness	1mm	Confirm
Molecular Formula	C	Confirm
Molecular Weight	12.01g/mol	Confirm
Color	Black	Confirm
Form	Solid Plate	Confirm
Mosaic spread	< 0.6° (< 0.6 degree)	Confirm
Density	2.27g/cm³	Confirm
Melting Point	3827 °C	Confirm
Hardness	85 Shore A	Confirm
Tensile Strength	650psi	Confirm
Composition	Flexible Graphite	Confirm
UL Flammability	94VO	Confirm
Temperature Range	-40°C to 400°C	Confirm
Thermal Conductivity	700w/m.k (X-Y axis)	Confirm
Thermal Conductivity	10~15w/m.k (Z Axis)	Confirm
Thermal Resistance	0.07 °C –in2/w	Confirm
Volume Resistivity	11*10-4Ω-cm	Confirm
Orientation	crystallographic c-axis should be perpendicular to the 10×10 mm plane
Main Inspect Verifier	Manager QC

Experts Review:

Terence Mitchell, PhD,(ICAI School of Engineering Madrid, Spain)
Highly Ordered Pyrolytic Graphite is a unique form of graphite decomposition of a hydrocarbon gas at very high temperature in a vacuum furnace. Ultra-pure product which is near theoretical density and extremely anisotropic. The material is deposited as graphene and grown onto a substrate giving it a layered composition with anisotropic properties. It has different properties across different planes. In the C plane (across its layers) it has low thermal conductivity, acting as an insulator. In the A-B plane it has very high thermal conductivity, acting as a superb conductor.

Dr. Steven Atkinson,Professor(University of Nottingham,UK)
Highly Ordered Pyrolytic Graphite is a specialized with unique thermal, electrical and chemical properties including superior EMI performance. These materials have applications where extreme temperature up to 6000°F (3300°C) and corrosive environments exist, conducting heat across its (a-b) planar surface like copper and insulating like ceramics in the (c) thickness direction. As a result of our proprietary finishing process we achieve extremely low particulates and chemical resistance to fluorine-based gases that provide solutions to problems in plasma and semi-conductor etching systems. PG has been highly diamagnetic, conducive to enhanced imaging process for medical applications.

Dr. Marco Ferro,MD PhD(University of Nordland Bodø, Norway)
Pyrolytic Graphite Sheet is a heat spreading material with high thermal conductivity. This material is lightweight and highly flexible. It can be cut into custom shapes, making it extremely useful for applications with limited space. In addition, it has excellent thermal conductivity properties, 600 to 800 W/(m-K), which is twice as high as copper and three times as high as aluminum. PGS can also be used as a clean and efficient alternative to silicone grease.

Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
Features of Pyrolytic Graphite Sheet: High Thermal Conductivity: 1500/1400 W/m.K, Multiple thicknesses: 25/40 µm, Light wight:~2g/cm³, Flexible and easy for cutting and trimming, Low thermal impedance, Low moisture content <1%.
Applications: Cell Phones, Tablets, Laptop, Ultrabooks, LED Backlight, PDP/LCD/OLED Display, High Power LED, DVC, DSC, PC Card Battery.
