Home » ITO Nanopowder (ITO, In2O3:SnO2=90:10, 9Purity: 99.9%, APS: <70nm)

NANOPOWDER COMPOUNDS

Stock No. CAS MSDS Specification COA Catalogue
NS6130-02-226 50926-11-9 MSDS pdf Specification pdf COA pdf

ITO Nanopowder

(ITO, In2O3:SnO2=90:10, 9Purity: 99.9%, APS: <70nm)

Vega-210®

Available Pack Size: 10Gms, 25Gms, 50Gms, 100Gms, 250Gms, 500Gms, 1Kg & Bulk orders
TEM - Indium Tin Oxide

TEM - Indium Tin Oxide

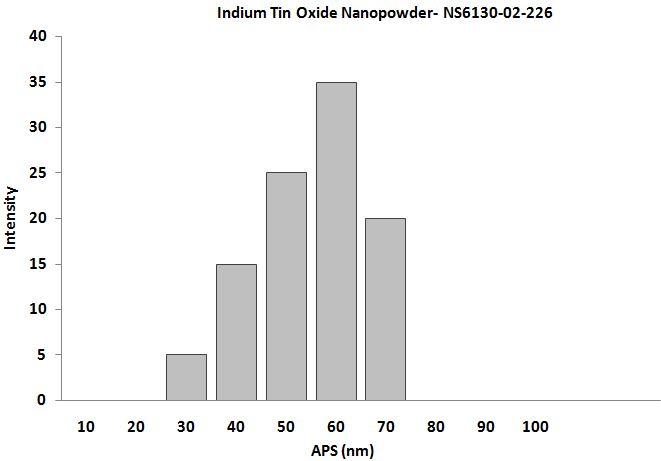

Particles Size Analysis

Particles Size Analysis

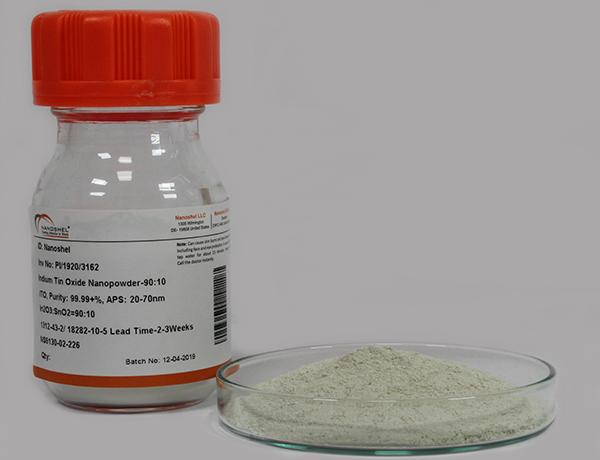

Indium Tin Oxide Nanopowder

Indium Tin Oxide Nanopowder


Product Indium Tin Oxide Nanopowder
Stock No. NS6130-02-226
CAS 50926-11-9 Confirm
APS <70 nm Confirm
Purity 99.9 % Confirm
Molecular Formula In2O3:SnO2 Confirm
Molecular Weight 428.34 g/mol Confirm
Form Powder Confirm
Color Yellow Green Confirm
Density 7.14 g/cm³ Confirm
Melting Point 1526-1926 °C Confirm
Electrical Resistivity 10-3 ~ 10-4 Ωcm Confirm
Solubility Insoluble in water Confirm
Quality Control Each lot of Indium Tin Oxide Nanopowder was tested successfully.
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9 %
In2O3 90% (±0.5%)
SnO2 10% (±0.5%)
Other Metal 0.1%

Expert Reviews

Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)

Indium Tin Oxide nanopowder used as with all transparent conducting films, a compromise must be made between conductivity and transparency, since increasing the thickness and increasing the concentration of charge carriers increases the material's conductivity, but decreases its transparency. Indium Tin Oxide nanopowder used in many electronic devices. Thin films of indium tin oxide are most commonly deposited on surfaces by physical vapor deposition. Often used is electron beam evaporation, or a range of sputter deposition techniques


Dr. Huojin Chan,  (University of Science and Technology of China, Hefei, Anhui, China)

Indium tin oxide Nanopowder (ITO)  is also used for various optical coatings, infrared-reflecting coatings for automotive, and sodium vapor lamp glasses. Other uses of Indium tin oxide Nanopowder include gas sensors, antireflection coatings, electrowetting on dielectrics, and Bragg reflectors for VCSEL lasers. Indium tin oxide Nanopowder  is also used as the IR reflector for low-e window panes.


Dr. Ms. Yi Yen Shi,  (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

In the energy sector Indium Tin Oxide nanopowder play an important role for photovoltaic solar cells. Indium Tin oxide nanopowder can be used in transparent electric -conductive materials such as conductive glue.Indium Tin Oxide nanopowder are used in high-end electronics if you need unique conductivity and transparency. In battery inhibitors Indium Tin Oxide nanopowder are also used. There are some researches about using Indium Tin Oxide in numerous touch screen technologies.


Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)

Indium tin oxide Nanopowder  is one of the most widely used transparent conducting oxides because of its two main properties: its electrical conductivity and optical transparency, as well as the ease with which it can be deposited as a thin film. Indium tin oxide Nanopowder (ITO) is an optoelectronic material that is applied widely in both research and industry. Indium tin oxide Nanopowder is a ternary composition of indium, tin and oxygen in varying proportions.


ITO Nanopowder

ITO Nanopowder
