Home » Magnesium Oxide Crucibles (Available Sizes 5ml – 100ml)

CRUCIBLES

Stock No. CAS MSDS Specification COA
NS6130-10-1026 1309-48-4. Specification pdf COA pdf

Magnesium Oxide Crucibles (Available Sizes 5ml – 100ml)

Magnesium Oxide Crucibles

Product: Magnesium Oxide Crucible

Quality Control: Each lot of NANOSHEL Magnesium Oxide Crucibles was tested successfully.

Magnesium Oxide Crucible

Magnesium Oxide Crucible


Product Name Magnesium Oxide Crucible
Stock No. NS6130-10-1026
Purity >99.9% Confirm
Capacity 5ml Confirm
Density 3.5 g/cm³ Confirm
Magnesium Oxide 99.9 % Confirm
Compressive Strength 1800 MPa Confirm
Bending Strength 600 MPa Confirm
Max Service Temp 2200 °C Confirm
Hardness 5-6 mohs Confirm
Lid Available In All Sizes (Get Quote)

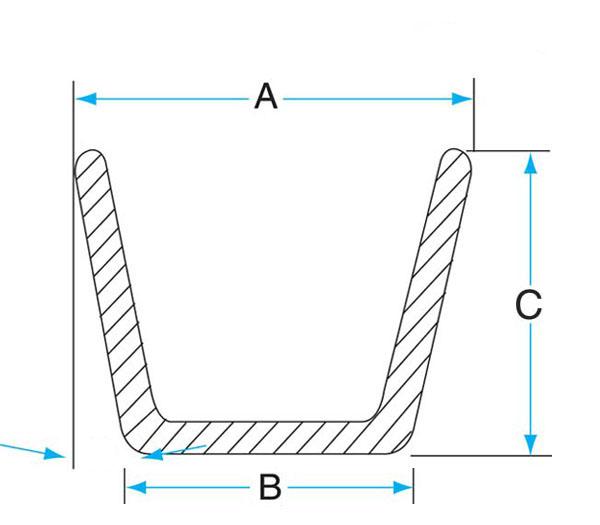

NS6130-10-1026 (A) Capacity: 5ml, Top Dia: 25mm (0.98in), Bottom Dia: 15mm (0.59in), Height: 28mm (1.1in)
NS6130-10-1026 (B) Capacity: 10ml, Top Dia: 29mm (1.14in), Bottom Dia: 18mm (0.71in), Height: 34mm (1.34in)
NS6130-10-1026 (C) Capacity: 20ml, Top Dia: 35mm (1.38in), Bottom Dia: 24mm (0.94in), Height: 42mm (1.65in)
NS6130-10-1026 (D) Capacity: 50ml, Top Dia: 48mm (1.89in), Bottom Dia: 30mm (1.18in), Height: 54mm (2.05in)
NS6130-10-1026 (E) Capacity: 100ml, Top Dia: 58mm (2.28in), Bottom Dia: 35mm (1.38in), Height: 68mm (2.68in)
NS6130-10-1026 (F) Capacity: 150ml, Top Dia: 66mm (2.6in), Bottom Dia: 40mm (1.57in), Height: 80mm (3.15in)
NS6130-10-1026 (G) Capacity: 250ml, Top Dia: 79mm (3.11in), Bottom Dia: 42mm (1.65in), Height: 93mm (3.66in)
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%

Expert Reviews

Terence Mitchell, PhD
Terence Mitchell, PhD, (ICAI School of Engineering Madrid, Spain)

 Magnesium Oxide Crucible : A crucible is a container that can withstand very high temperatures and is used for metal, glass, and pigment production as well as a number of modern laboratory processes. In past centuries crucibles were usually made from clay, they can be made from any material that withstands temperatures high enough to melt or otherwise alter its contents.


Dr. Steven Atkinson,Professor
Dr. Steven Atkinson,Professor, (University of Nottingham,UK)

 Magnesium Oxide Crucible : Crucibles may be as small as teacups or may hold several tons of metal. They may be fixed in place within a furnace structure or may be designed to be removed from the furnance for pouring at the end of each melt. Crucibles are used in fuel-fired furnances, in electric resistance furnances, in induction furnaces or simply to transfer molten metal.


Dr. Ms. Huian Ruan
Dr. Ms. Huian Ruan, (Taungoo Technological University, Myanmar)

 Magnesium Oxide Crucible : Crucibles offers many different performance characteristics aseach application presents a complex set of temperature, chemical, and physical parameters which define the technical boundaries within which the crucible has to bedesigned to operate.


Dr. Marco Ferro,MD PhD
Dr. Marco Ferro,MD PhD, (University of Nordland Bodø, Norway)

 Magnesium Oxide Crucible : Good thermal conductivity and even heating are important crucible properties in transferring the heat from the interior of the furnance through the crucible to the metal charge. Crucibles with high graphite content in the carbon binder offer high thermal conductivity for fast melting in glass-fired furnaces
