MgO Nanoparticles (Magnesium Oxide, 99.9%, <60 nm)

MgO Nanoparticles

Product: MgO Nanoparticles (Magnesium Oxide, 99.9%, <60 nm)

Quality Control: Each lot of NANOSHEL MgO Nanoparticles was tested successfully.

Nano Magnesium Oxide Powder

SEM – Magnesium Oxide Nanoparticles

Magnesium Oxide Nanopowder

SEM – Magnesium Oxide Nanopowder

Material MgO Nanoparticles
Stock No NS6130-03-329
CAS 1309-48-4 Confirm

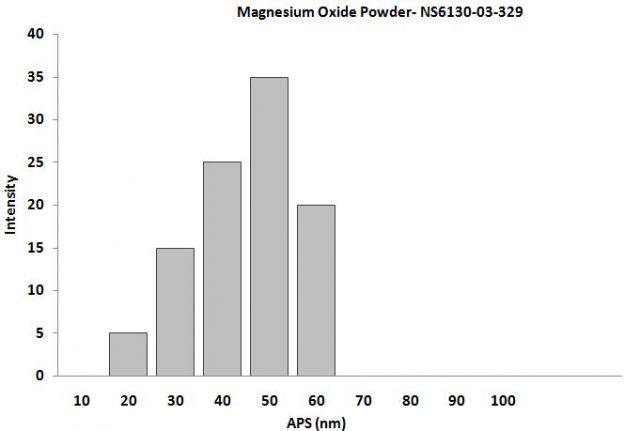

APS <60nm Confirm
Purity 99.9% Confirm
Color White Confirm
Molecular Formula MgO Confirm
True Density 3.58 g/cm³ Confirm
Molecular Weight 40.304 g/mol Confirm
Melting Point 2852 °C Confirm
Boiling Point 3600 °C Confirm
Solubility in water 0.00062 g/100ml (0 °C) Confirm
SSA ~40m2/g Confirm
Morphology Polyhedral Confirm
Bulk Density 0.18 g/cm³ Confirm
Loss of weight in drying <0.3 % Confirm
Loss of weight in burning <0.1 % Confirm
Thermal Conductivity 45–60 W·m−1·K−1 Confirm
Available Quantities 25Gms, 50Gms, 100Gms and larger quantities
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%
Ca <0.05 %
K <0.05 %
Na <0.03 %

Experts Review:

Miller-(Christopher)-345x239Dr. Baron Augustin, Ph.D (TUM)(Technical University of Munich, Germany)
Metal oxides play a very important role in many areas of chemistry, physics and materials science.  The metal elements are able to form a large diversity of oxide compounds. These can adopt a vast number of structural geometries with an electronic structure that can exhibit metallic, semiconductor or insulator character. In technological applications, oxides are used in the fabrication of microelectronic circuits, sensors, piezoelectric devices, fuel cells, coatings for the passivation of surfaces against corrosion, and as catalysts.


images (33)

Dr. Darren Chandler, Ph.D(Manchester Metropolitan University, U.K)
Oxide nanoparticles can exhibit unique physical and chemical properties due to their limited size and a high density of corner or edge surface sites. Particle size is expected to influence three important groups of basic properties in any material. The first one comprises the structural characteristics, namely the lattice symmetry and cell parameters.


Wiggs

Dr. Ms. Cristiana Barzetti (University of Cagliari-Department of Chemical Engineering and Material Science, Italy)
Bulk oxides are usually robust and stable systems with well-defined crystallographic structures. However, the growing importance of surface free energy and stress with decreasing particle size must be considered: changes in thermodynamic stability associate with size can induce modification of cell parameters and/or structural transformations and in extreme cases the nanoparticle can disappear due to interactions with its surrounding environment and a high surface free energy.  In order to display mechanical or structural stability, a nanoparticle must have a low surface free energy.


jetsonlee

Dr. Jang Huang, Ph.D (Shandong Science and Technology University, China)
The effect of size is also related to the electronic properties of the oxide. In any material, the nanostruture produces the quantum size or confinement effects which essentially arise from the presence of discrete, atom-like electronic states. From a solid-state point of view, these states can be considered as being a superposition of bulk-like states with a concomitant increase in oscillator strength.  Additional general electronic effects of quantum confinement experimentally probed on oxides are related to the energy shift of exciton levels and optical bandgap.


images (21)Dr. Mark Brown (Georgia Institute of Technology in Atlanta,USA)
Structural and electronic properties drive the physical and chemical properties of the solid, the third group of properties influenced by size in a simple classification. In their bulk state, many oxides have wide band gaps and a low reactivity. A decrease in the average size of an oxide particle do in fact change the magnitude of the band gap, with strong influence in the conductivity and chemical reactivity.


MgO Nanoparticles

Magnesium Oxide Nanoparticles

This material ships as dry granules or powder. Each grade contains particles with an average thickness and surface area. All dimensions represent median sizes and there is a distribution around the mean. MgO Nanoparticles by Nanoshel.
