MOLYBDENUM Crucibles (Available Sizes 5ml – 100ml)

High Purity Innovative Materials

Molybdenum Crucible

Quality Control: Each lot of Nanoshel Molybdenum Crucible was tested successfully.

Crucible Size

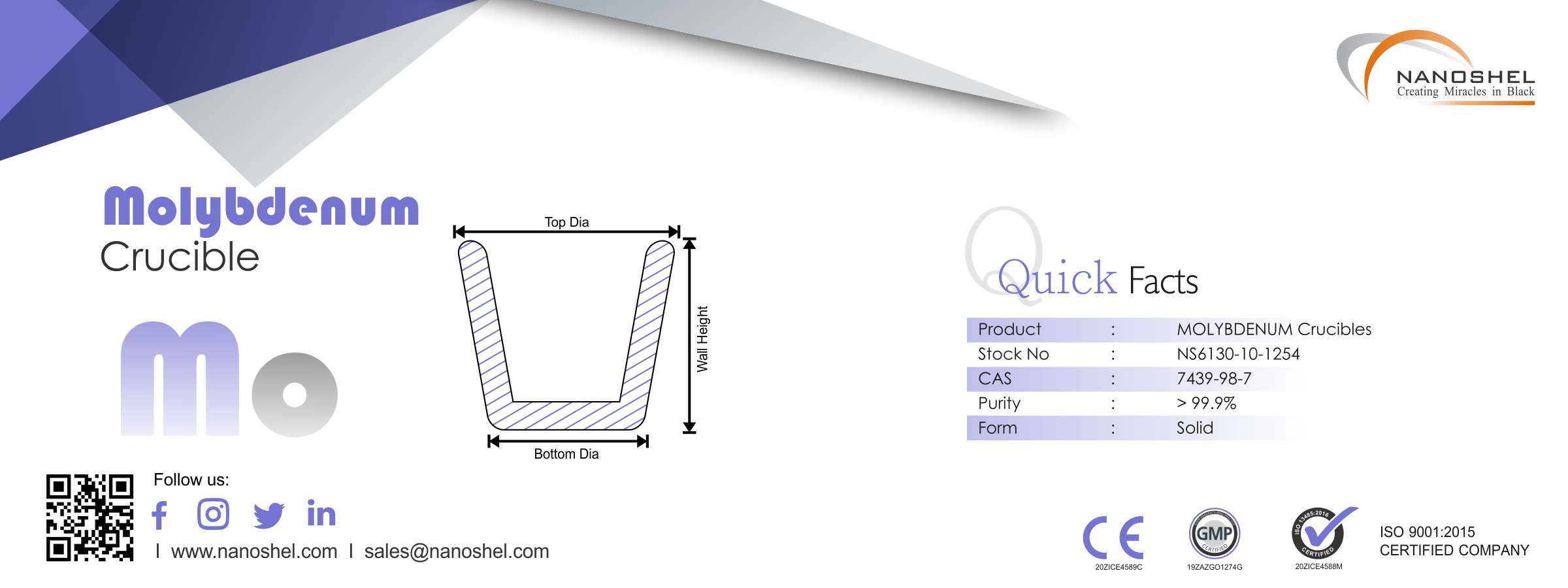

Metal Crucible Line Diagram

Stock No. NS6130-10-1254
Purity >99.9% Confirm
Capacity 5ml Confirm
Density 10.2 g/cm³ Confirm
Melting Point 2623 °C Confirm
Boiling Point 4639 °C Confirm
Thermal conductivity 98.8W/M.K (1400°C) Confirm
Resistivity 53.1Ω.cm (1730°C) Confirm
Vapor pressure 7.09 X 10-6 Pa (1600 oC ) Confirm
Modulus 350MPa Confirm
Thermal expansion coefficient 6.2 X 10-6 K-1 Confirm
Tensile strength 687MPa Confirm
Main Inspect Verifier Manager QC
Lid Available In All Sizes (Get Quote)

Molybdenum Crucible Chemical Composition

W 0.3 %
O2 0.01 %
Fe 0.01 %
C 0.01 %
Al 0.002 %
N2 0.003 %
Si 0.006 %
Ni 0.005 %
Ca + Mg 0.007 %

More Molybdenum Crucibles Available in Different Sizes

Stock No Capacity (A)
Top Dia
(B)
Bottom Dia
(C)
Height
NS6130-10-1054 (A) 5ml 25mm (0.98in) 15mm (0.59in) 28mm (1.1in)
NS6130-10-1054 (B) 10ml 29mm (1.14in) 18mm (0.71in) 34mm (1.34in)
NS6130-10-1054 (C) 20ml 35mm (1.38in) 24mm (0.94in) 42mm (1.65in)
NS6130-10-1054 (D) 50ml 48mm (1.89in) 30mm (1.18in) 54mm (2.05in)
NS6130-10-1054 (E) 100ml 58mm (2.28in) 35mm (1.38in) 68mm (2.68in)
NS6130-10-1054 (F) 150ml 66mm (2.6in) 40mm (1.57in) 80mm (3.15in)
NS6130-10-1054 (G) 250ml 79mm (3.11in) 42mm (1.65in) 93mm (3.66in)
