Nano Titanium Dioxide Rutile Powder (TiO2, Rutile, 99.9%, 30nm, Coated with Silicon)

Nano Titanium Dioxide Rutile

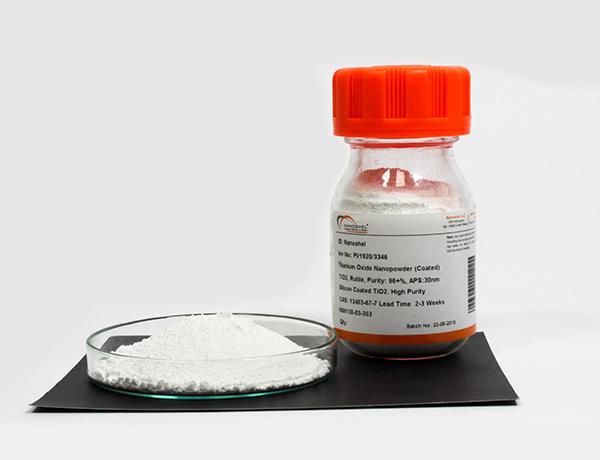

Product: Nano Titanium Dioxide Rutile (TiO2, 99.9%, 30nm Coated with Silicon)

Quality Control: Each lot of NANOSHEL Nano Titanium Dioxide Rutile was tested successfully.

Nano Titanium Dioxide Rutile

SEM – TiO2 Silicon Coated Nanoparticles

Nano Titanium Dioxide Rutile

Titanium Oxide Nanopowder – Size Analysis

Material Nano Titanium Dioxide Rutile
Stock No NS6130-03-353
CAS 13463-67-7 Confirm
APS 30nm Confirm
Purity 99.9% Confirm
Molecular Formula TiO2 Confirm
Molecular Weight 79.866 g/mol Confirm
True Density 3.9 g/cm³ Confirm
Melting Point 1843 °C Confirm
Boiling Point 2972 °C Confirm
SSA >55 m²/g Confirm
Available Quantities 25Gms, 50Gms, 100Gms and larger quantities
Main Inspect Verifier Manager QC (Nano Titanium Dioxide Rutile)

Typical Chemical Analysis Nano Titanium Dioxide Rutile

Assay 99.9%
TiO2 Rutile 96wt%
Si 3-3.5%
Mg <30ppm
K+Na <160ppm
Ca <150ppm

Experts Review:

Miller-(Christopher)-345x239Dr. Baron Augustin, Ph.D (TUM)(Technical University of Munich, Germany)
Metal oxides play a very important role in many areas of chemistry, physics and materials science.  The metal elements are able to form a large diversity of oxide compounds. These can adopt a vast number of structural geometries with an electronic structure that can exhibit metallic, semiconductor or insulator character. In technological applications, oxides are used in the fabrication of microelectronic circuits, sensors, piezoelectric devices, fuel cells, coatings for the passivation of surfaces against corrosion, and as catalysts.


images (33)

Dr. Darren Chandler, Ph.D(Manchester Metropolitan University, U.K)
Oxide nanoparticles can exhibit unique physical and chemical properties due to their limited size and a high density of corner or edge surface sites. Particle size is expected to influence three important groups of basic properties in any material. The first one comprises the structural characteristics, namely the lattice symmetry and cell parameters.


Wiggs

Dr. Ms. Cristiana Barzetti (University of Cagliari-Department of Chemical Engineering and Material Science, Italy)
Bulk oxides are usually robust and stable systems with well-defined crystallographic structures. However, the growing importance of surface free energy and stress with decreasing particle size must be considered: changes in thermodynamic stability associate with size can induce modification of cell parameters and/or structural transformations and in extreme cases the nanoparticle can disappear due to interactions with its surrounding environment and a high surface free energy.  In order to display mechanical or structural stability, a nanoparticle must have a low surface free energy.


jetsonlee

Dr. Jang Huang, Ph.D (Shandong Science and Technology University, China)
The effect of size is also related to the electronic properties of the oxide. In any material, the nanostruture produces the quantum size or confinement effects which essentially arise from the presence of discrete, atom-like electronic states. From a solid-state point of view, these states can be considered as being a superposition of bulk-like states with a concomitant increase in oscillator strength.  Additional general electronic effects of quantum confinement experimentally probed on oxides are related to the energy shift of exciton levels and optical bandgap.


images (21)Dr. Mark Brown (Georgia Institute of Technology in Atlanta,USA)
Structural and electronic properties drive the physical and chemical properties of the solid, the third group of properties influenced by size in a simple classification. In their bulk state, many oxides have wide band gaps and a low reactivity. A decrease in the average size of an oxide particle do in fact change the magnitude of the band gap, with strong influence in the conductivity and chemical reactivity.


Nano Titanium Dioxide Rutile

Nano Titanium Dioxide Rutile

free quote

Contact Us for Nano Titanium Dioxide Rutile
From us, you can easily purchase Nano Titanium Dioxide Rutile at great prices. Place online order and we will dispatch your order through DHL, FedEx, UPS. You can also request for a quote by mailing us at sales@nanoshel.com Contact: +1 302 268 6163 (US and Europe), Contact: +91-9779550077 (India). We invite you to contact us for further information about our company and our capabilities. At Nanoshel, we could be glad to be of service to you. We look forward to your suggestions and feedback.
