QUARTZ Crucibles (Available Sizes 5ml – 100ml)

QUARTZ Crucibles Innovative Materials

Product: Quartz Crucible

Quality Control: Each lot of Nanoshel Quartz Crucible was tested successfully.

Crucible Size

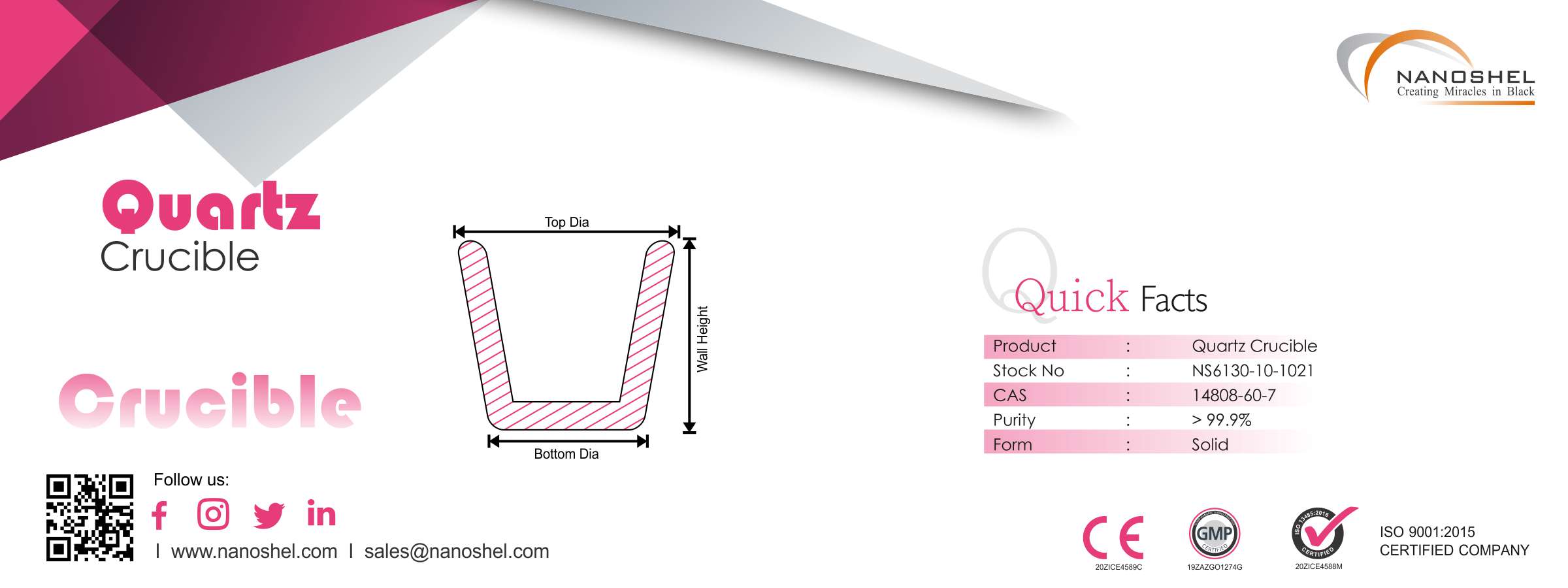

Metal Crucible Line Diagram

Materials Quartz Crucible
Stock No. NS6130-10-1021
Purity >99.9% Confirm
Capacity 5ml Confirm
Density 2.20-2.30 g/cm³ Confirm
Melting Point 1732°C Confirm
Hardness 6.6 mohs Confirm
Apparent Porosity 7-11 % Confirm
Max Service Temp 1450 °C Confirm
Compressive Strength 1000 MPa Confirm
Main Inspect Verifier Manager QC
Lid Available In All Sizes (Get Quote)

More Quartz Crucibles Available in Different Sizes

Stock No Capacity (A)
Top Dia
(B)
Bottom Dia
(C)
Height
NS6130-10-1021 (A) 5ml 25mm (0.98in) 15mm (0.59in) 28mm (1.1in)
NS6130-10-1021 (B) 10ml 29mm (1.14in) 18mm (0.71in) 34mm (1.34in)
NS6130-10-1021 (C) 20ml 35mm (1.38in) 24mm (0.94in) 42mm (1.65in)
NS6130-10-1021 (D) 50ml 48mm (1.89in) 30mm (1.18in) 54mm (2.05in)
NS6130-10-1021 (E) 100ml 58mm (2.28in) 35mm (1.38in) 68mm (2.68in)
NS6130-10-1021 (F) 150ml 66mm (2.6in) 40mm (1.57in) 80mm (3.15in)
NS6130-10-1021 (G) 250ml 79mm (3.11in) 42mm (1.65in) 93mm (3.66in)

Experts Review:

Terence Mitchell, PhD,(ICAI School of Engineering Madrid, Spain)

Terence Mitchell, PhD,(ICAI School of Engineering Madrid, Spain)
Quartz Crucible The leading anti-corrosion character, strength at high temperature, outstanding physical mechanical properties of Nanoshel Quartz is ideally suited for reboiling, preheating and condensing of nitric acid combinations of these acids with any other chemicals like aqua regia Nanoshel Quartz equipments are to be made from electron beam melted high purity rod, sheet and tubings.


Dr. Steven Atkinson,Professor(University of Nottingham,UK)

Dr. Steven Atkinson,Professor(University of Nottingham,UK)
Quartz Crucible Because of its high melting point of 5432ºF, Nanoshel Quartz has been widely used in the electronics, nuclea, aerospace and chemical industries and in such areas as crucibles, boats, heat shields and others components for vacuum furnace, where heat must be transferred to or from acids and other corrosive fluids and vapors.


Dr. Ms. Huian Ruan(Taungoo Technological University, Myanmar)

Dr. Ms. Huian Ruan(Taungoo Technological University, Myanmar)
Quartz Crucible Nanoshel Quartz exhibits excellent resistance to most acids, especially hydrochloric, sulfuric, nitric and aqua regia at normal temperature and is also completely resistance to attack by many molten metals, including sodium, lithium, magnesium, potassium and mercury in temperatures up to 1100ºc (2000ºF)


Dr. Marco Ferro,MD PhD(University of Nordland Bodø, Norway)

Dr. Marco Ferro,MD PhD(University of Nordland Bodø, Norway)
Quartz Crucible Salts and their solutions generally do not attack Nanoshel Quartz unless they are prone to alkaline hydrolysis or contain fluorine ions, chlorides and bromides such as ferric chloride, mercury and stannous chloride up to 175ºc (350ºF).


quartz crucible

quartz crucible

free quote

Contact Us for Quartz Crucible
From us, you can easily purchase Quartz Crucible at great prices. Place online order and we will dispatch your order through DHL, FedEx, UPS. You can also request for a quote by mailing us at sales@nanoshel.com Contact: +1 302 268 6163 (US and Europe), Contact: +91-9779550077 (India). We invite you to contact us for further information about our company and our capabilities. At Nanoshel, we could be glad to be of service to you. We look forward to your suggestions and feedback.
