Silicon Oxide Sputtering Target (SiO2, Purity: 99.99%, Dia: 50±1mm)

Silicon Oxide Sputtering Target

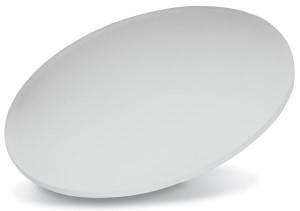

Product: Silicon Oxide Sputtering Target (SiO2, Purity: 99.99%, Dia: 50±1mm)

Quality Control: Each lot of NANOSHEL Silicon Oxide Sputtering Target was tested successfully.

Silicon Oxide Sputtering Target

Silicon Oxide Sputtering Target

Product Name Silicon Oxide Sputtering Target
Product Code NS6130-10-1057
CAS 7631-86-9 Confirm
Diameter 50 mm ± 1mm Confirm
Thickness 3 mm ± 0.5mm Confirm
Purity >99.9% Confirm
Density 2.648 g/cm³ Confirm
Molecular Weight 60.08 g/mol Confirm
Melting Point 1713 °C Confirm
Shape Round Confirm
Size and Shape Targets Diameter and thickness can be according to Customer Requirement
Backing Plate Copper (as per customer requirement)
Conclusion The specifications Confirm with enterprise standard
Main Inspect Verifier Manager QC

TYPICAL CHEMICAL ANALYSIS

SiO2 99.9% Confirm
