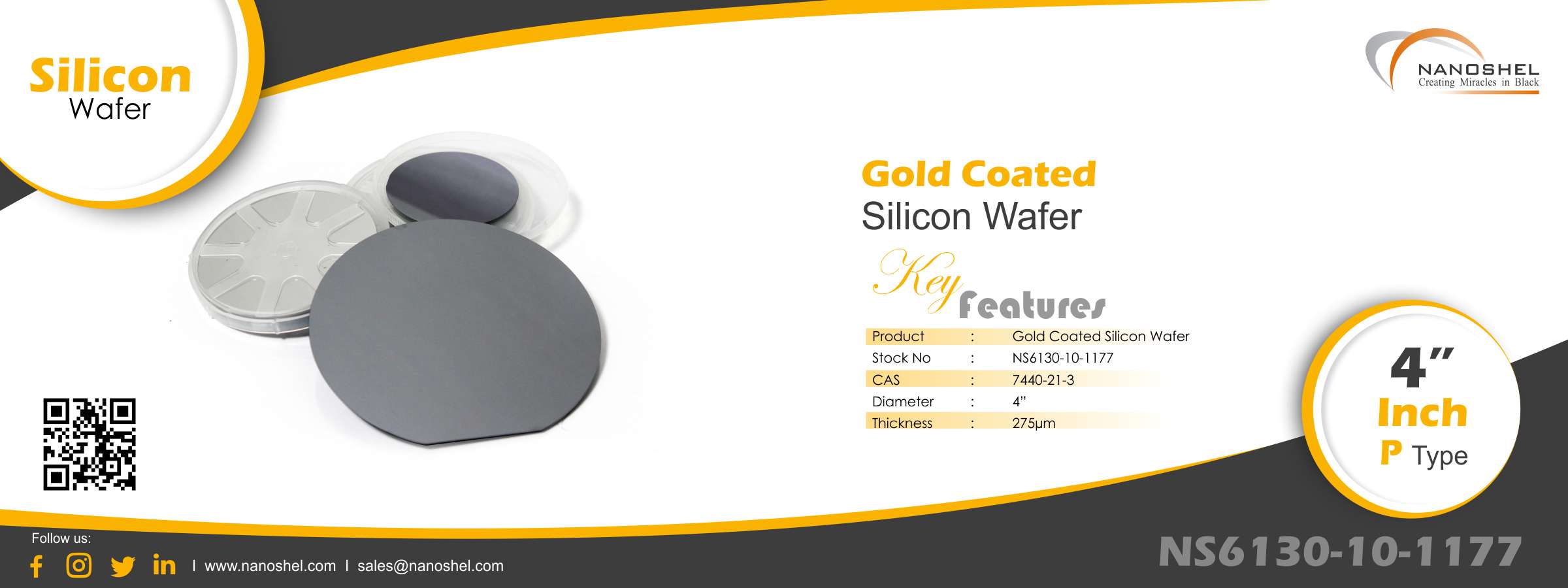

Silicon Wafer Gold Coated
(4 inches, Single Side Polished)
Silicon Wafer Gold Coated
| Product | Gold Coated Silicon Wafer | |
| Stock No | NS6130-10-1177 | |
| CAS | 7440-21-3 | Confirm |
| Diameter | 04” (101.6mm) | Confirm |
| Thickness | 275 μm | Confirm |
| Crystal Orientation | <100> | Confirm |
| Type | N | Confirm |
| Resistivity | 1-10ohm-cm | Confirm |
| Surface | Single Side Polished | Confirm |
| Doping | Phosphorous | Confirm |
| Quality Control | Each lot of Gold Coated Silicon Wafer was tested successfully. | |
| Main Inspect Verifier | Manager QC | |
Expert Reviews
Dr. Chiyoko Hayashi , (Osaka University Suita, Japan)
As silicon wafer’s primary use is in integrated circuits. Integrated circuits power many of devices that can be used by society everyday. Computers and smartphones are just two of the devices that are dependent on this technology. Silicon is the stable among all the semiconductors. Other uses include sensors, such as the tire pressure sensor system and solar cells. Silicon wafers absorbs the photons in sunlight and this in turn create electricity.
Dr. Joris Smits, Ph.D , (Wrocław University of Technology, Poland)
The wafers serves as the substrates for microelectronic devices built in and over the wafer and undergoes many microfabrication process steps such as doping or ion implantation, etching, deposition of various materials and photolithographic pattering.
Dr. Ms. Sally Adams , (National Technical University of Athens)
Silicon wafers are available in a variety of diameters from 25.4mm (1 inch) to 300mm. The diameter has gradually increased to improve throughput and reduce cost with the current state –of-the-art of fab considered to be 300mm with the next standard projected to be 450mm.
Dr. Peter Bruggmann , (Technical University of Madrid, Spain)
Wafer thickness is determined by the mechanical strength of the material used the wafer must be thick enough to support its own weight without cracking during handling. Wafers are grown from crystals having a regular crystal structure, with silicon having a diamond cubic structure. Orientation is defined by the Miller index with (100) or (111) faces being the most common for silicon. Ion implantation depths depend on the wafer’s crystal orientation, since each direction offers distinct paths for transport.
Silicon Wafer Gold Coated 4?
From us, you can easily purchase Silicon Wafer Gold Coated at great prices. Place online order and we will dispatch your order through DHL, FedEx, UPS. You can also request for a quote by mailing us at sales@nanoshel.com. We invite you to contact us for further information about our company and our capabilities. At Nanoshel, we could be glad to be of service to you. We look forward to your suggestions and feedback.
