Home » SWCNT (>98wt% OD: 1-2nm, Length: 3-8µm, High Purity)

SINGLE WALL CNT

Stock No. CAS MSDS Specification COA
NS6130-06-601 308068-56-6 Specification pdf

SWCNT (>98wt% OD: 1-2nm, Length: 3-8µm, High Purity)

SWCNT

SWCNT (>98wt% OD: 1-2nm, Length: 3-8µm, High Purity)

Quality Control: Each lot of SWCNT was tested successfully.

SEM - SWCNT

SEM - SWCNT

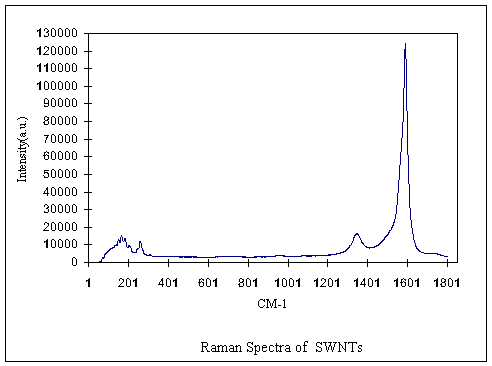

SWCNT Raman Spectra

SWCNT Raman Spectra


Product SWCNT
Stock No NS6130-06-601
CAS 308068-56-6 Confirm
Category S-SL-1 Confirm
Diameter 1-2 nm Confirm
Length 3-8 µm Confirm
Purity >98% (SWNT) Confirm
Amorphous carbon >1% Confirm
Residue ( calcination in air) <1% Confirm
SSA 350-450* m²/g Confirm
Bulk Density 0.17-0.30 g/cm³ Confirm
Real Density 2-3 g/cm³ Confirm
Charging * 2180 (Capacity: mA h/g) Confirm
Discharging* 534 (Capacity: mA h/g) Confirm
Volume Resistivity 0.1-0.15 Ω.cm ( measured at pressure in powder) Confirm
Available Quantities 2Gms, 5Gms, 10Gms, 25Gms and larger quantites
Main Inspect Verifier Manager QC

Expert Reviews

Dr. Changsik Yoo, Ph.D, (Nanyang Technological University, Singapore)

Single-walled nanotubes are important form of carbon nanotube because they exhibit electric properties that are not exsist in the multi-walled carbon nanotube (MWNT) variants. In particular, the band gap of SWNT can vary from zero to about 2 eV and their electrical conductivity can show metallic or semiconducting behavior.


Dr. Bram van Andel, Ph.D, (International Medical and Technological University, Dar es Salaam, Tanzania)

Single-walled nanotubes are excellent conductors & the most likely candidate for miniaturizing electronics beyond the micro electromechanical scale currently used in electronics. The most basic building block of these systems is the electric wire.


Dr. Ana D. Gavrilovici,  (University of Santiago of Chile (USACH), Chile)

Most single-walled nanotubes (SWNT) have a diameter of close to 1 nanometer, with a tube length that can be many millions of times longer. The structure of a SWNT can be conceptualized by wrapping a one-atom-thick layer of graphite called graphene into a seamless cylinder.


Dr. Yeng-Tim Liu, (National Taiwan University of Science and Technology, Taiwan)

SWNTs exhibit a richness in electronic behavior that may be exploited for molecular device applications. For example, metallic nanotubes may be used in resonant tunneling devices and also function as interconnects between device elements. Semiconducting nanotubes have already shown their utility in nanometer-sized field-effect transistors.


Dr. Sheng Choy Wong Ph.D, (University of the Philippines College of Engineering, Quezon City, Philippines)

The finite-sized SWNTs may be employed to raise the operating temperature of nanotube-based devices. Finally, metallic nanotubes decorated with magnetic impurities exhibit an enhancement in their conductance at low energies, and unique applications of these magnetic nano-structures may soon be uncovered.


SWNT

SWNT
