Yttrium Aluminium Neodymium doped

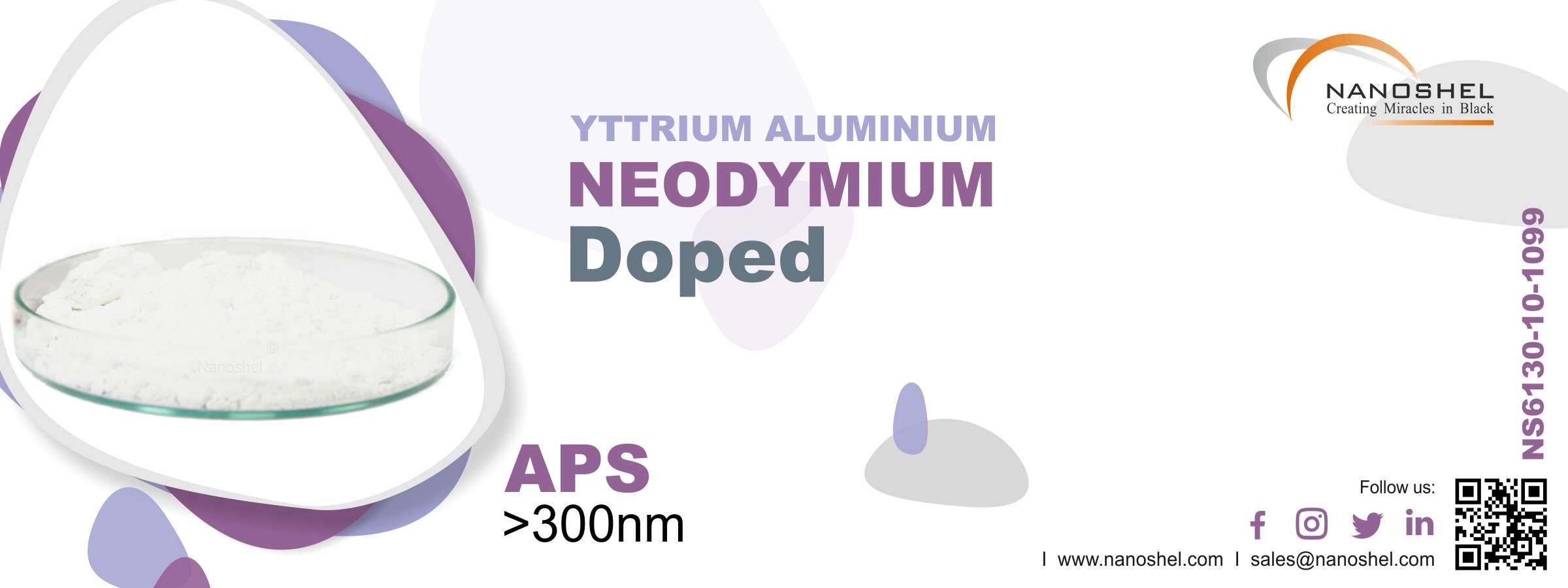

Product: Yttrium Aluminium Neodymium doped (Y2.97Nd0.03Al5O12, Purity: 99%, >300nm)
Quality Control: Each lot of NANOSHEL Yttrium Aluminium Neodymium doped was tested successfully.
|Material||Yttrium Aluminium Neodymium doped|
|Melting Point||1970 °C||Confirm|
|Weight of Nd||0.725%||Confirm|
|Atoms of Nd per unit volume||1.38×1020 /cm³||Confirm|
|Charge state of Nd||3+||Confirm|
|Emission wavelength||1064 nm||Confirm|
|Transition||4F3/2 → 4I11/2||Confirm|
|Duration of fluorescence||230 μs||Confirm|
|Thermal Conductivity||0.14 W·cm−1·K−1||Confirm|
|Specific heat capacity||0.59 J·g−1·K−1||Confirm|
|Thermal expansion||6.9×10−6 K−1||Confirm|
|Young’s modulus||3.17×104 K·g/mm−2||Confirm|
|Resistance to thermal shock||790 W·m−1||Confirm|
|Main Inspect Verifier||Manager QC|
Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)
Doping on nanomaterials provides a flexible way to tune to the properties of the materials while maintaining their high surface areas. The electronic, optical, photochemical, photo-electrochemical, photocatalytic and photoexcited relaxation properties can be tuned towards the desired direction by adding different elements. The materials can be engineered towards specific applications through careful selection of the dopants.
Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
Doping is a powerful and effective way to alter the electronic and optical properties of a semiconductor. Doping is essential in the semiconductor industry since most semiconductors including silicon are essentially insulators without doping at room temperature. The addition of dopant can introduce electronic and structural defects into the pristine nanomaterials that can be advantageous or deleterious.
Dr. Huojin Chan (University of Science and Technology of China, Hefei, Anhui, China)
Doping typically follows a Poisson distribution. The uniform doping is done either by growth or nucleation techniques by decoupling the doping and growth process. In nucleation doping reaction conditions are controlled in such a way along with judicious choice of reactants that a nucleus of dopant can be created and by shell growth of effectively confining the dopant to the center of particle.
Dr. Ms. Yi Yen Shi, (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)
Nano-materials have been recently investigated due to their novel properties that are acquired at the nanometer scale, properties which change with size or shape. Besides the elemental composition and physical structure, as in bulk material or traditional chemistry, the size of the material provides another variable for us to tune the property of material. Moreover, a few dopants in the material can make the properties more adjustable.
Dr. Hans Roelofs Ph.D (National Technical University of Athens, Greece)
Dopant precursor substantially changes the reaction kinetics. Doped semiconductor nanomaterials are expected to play an important role in nanoelectronics and nanophotonic devices. Doping level of nanostructures will effects the properties and functionality of nanoparticles. Doped semiconductor nanomaterials constitute a unique and important class of nanomaterials with novel properties.
