Zirconium Diboride Nanopowder ( ZrB2, Purity: 99.9%, APS: 80-100 nm)

High Purity Zirconium Diboride Nanopaowder

Product Zirconium Diboride Nanopowder ( ZrB2, Purity: 99.9%, APS: 80-100 nm)

Quality Control: Each lot of Zirconium Diboride Nanopowder was tested successfully.

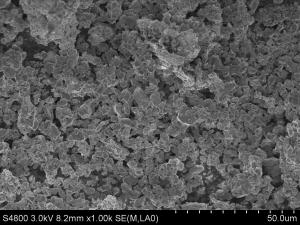

Zirconium Diboride Nanopowder SEM/TEM

TGA Cruve of Zirconium Diboride

TGA Cruve of Zirconium Diboride

Materials Zirconium Diboride Nanopowder
Stock No NS6130-12-000412
CAS 12045-64-4 Confirm
APS 80-100 nm Confirm
Molecular Formula ZrB2 Confirm
Purity 99.9% Confirm
Density 6.085 g/cm3 Confirm
Melting Point 3246 °C Confirm
Molar mass 112.85 g/mol Confirm
SSA >45 m²/g Confirm
Volume Density 0.49 g/cm³ Confirm
Available Quantities 25Gms, 50Gms, 100Gms and larger quantities
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay ≥ 99.9 %
Fe ≤ 0.002 %
Ca ≤ 0.001 %
Mg ≤ 0.001 %
Cu ≤ 0.001 %
Mn ≤ 0.001 %
Na ≤ 0.001 %
Co ≤ 0.001 %
Zn ≤ 0.001 %
Ni ≤ 0.003 %
Pb ≤ 0.001 %

Experts Review:

58496396Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)
Nanoshel’s Zirconium Diboride
(ZrB2) is a highly covalent refractory ceramic material with a hexagonal crystal structure. ZrB2 is an ultra high temperature ceramic (UHTC) with a melting point of 3246 °C. This along with its relatively low density of ~6.09 g/cm3 (measured density may be higher due to hafnium impurities) and good high temperature strength makes it a candidate for high temperature aerospace applications such as hypersonic flight or rocket propulsion systems


1252525Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)
Nanoshel’s Zirconium Diboride (ZrB2) ceramics have a high melting point, high hardness, high electrical conductivity, excellent corrosion resistance against molten iron and slags, superb thermal shock resistance.
It is one of the promising materials for high temperature applications in several industrial sectors, such as foundry or refractory industries.


2536582Dr. Huojin Chan (University of Science and Technology of China, Hefei, Anhui, China)
Nanoshel’s Zirconium Diboride is wet by molten metals but is not attacked by them, making it a useful material for molten metal crucibles, thermowell tubes for steel refining and in electrical devices: heaters and igniters. Applications are also found in aerospatial industry: hypersonic re-entry vehicles, leading edges, nose caps, rocket nozzle inserts and air augmented propulsion systems components.


10604509_1459864657612760_2405225879143508610_oDr. Ms. Yi Yen Shi, (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)
Nanoshel’s Zirconium Diboride
applications has been recently proposed in aerospace leading edge parts on hypersonic re-entry spacecraft, rockets nozzle inserts and air propulsion system compounds this material can be electrical dischargemechined for its low electrical resistivity (~10u ohms m) tp produce complex shaped parts.


125448Dr. Hans Roelofs Ph.D (National Technical University of Athens, Greece)
Hypersonic flights, re-entry vehicles, and propulsion applications all require new materials that can perform in oxidizing or corrosive atmospheres at temperatures in excess of 2000°C and sometimes over the course of a long working life. Ultra High Temperature Ceramics (UHTCs) are good candidates to fulfill these requirements. Within this family, the Zirconium Diboride and Hafnium Boride based composites are the most attractive.


Zirconium Diboride Web

Zirconium Diboride Nanopowder

This material ships as dry granules or powder. Each grade contains particles with an average thickness and surface area. All dimensions represent median sizes and there is a distribution around the mean. Zirconium Diboride Nanopowder by Nanoshel.

Contact Us for Zirconium Diboride Nanopowder
free quote

From us, you can easily purchase nano materials at great prices. Place online order and we will dispatch your order through DHL, FedEx, UPS. You can also request for a quote by mailing us at sales@nanoshel.com Contact: +1 302 268 6163 (US and Europe), Contact: +91-9779550077 (India). We invite you to contact us for further information about our company and our capabilities. At Nanoshel, we could be glad to be of service to you. We look forward to your suggestions and feedback.
