ZIRCONIUM OXIDE Crucibles (Available Sizes 5ml – 100ml)

High Purity Innovative Materials

Zirconium Oxide Crucible

Quality Control: Each lot of was tested successfully.

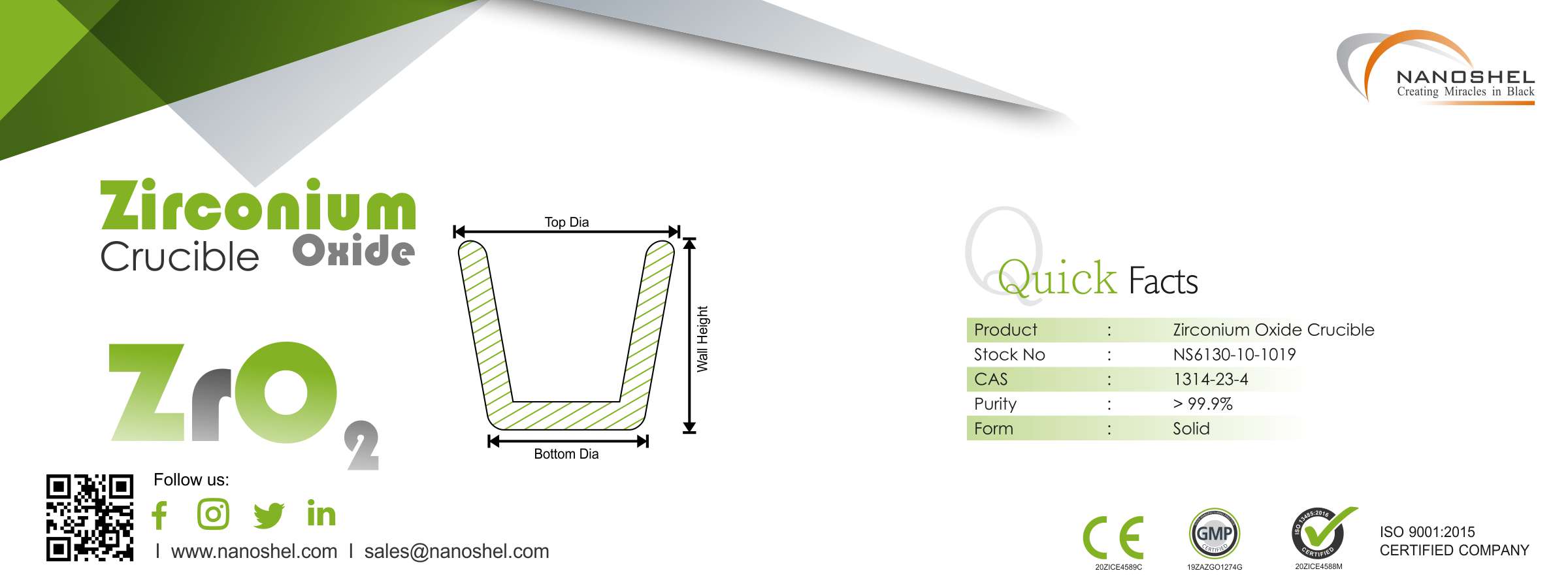

Metal Crucible Line Diagram

Metal Crucible Line Diagram


Product Zirconium Oxide Crucible
Stock No. NS6130-10-1019
Purity >99.9% Confirm
Capacity 5ml Confirm
Density 6.01 g/cm³ Confirm
Thermal Conductivity 2.6 W/m•K( 20°C) Confirm
Thermal Resistance 300 °C Confirm
Elasticity 200 GPa Confirm
Flexural Strength 900 MPa Confirm
Compressive Strength 2600 MPa Confirm
Max Service Temp 2200-2300 °C Confirm
Dielectric Strength 11×106 V/m Confirm
Hardness 13.2 Confirm
Lid Available In All Sizes (Get Quote)
NS6130-10-1019 (A) Capacity: 5ml, Top Dia: 25mm (0.98in), Bottom Dia: 15mm (0.59in), Height: 28mm (1.1in)
NS6130-10-1019 (B) Capacity: 10ml, Top Dia: 29mm (1.14in), Bottom Dia: 18mm (0.71in), Height: 34mm (1.34in)
NS6130-10-1019 (C) Capacity: 20ml, Top Dia: 35mm (1.38in), Bottom Dia: 24mm (0.94in), Height: 42mm (1.65in)
NS6130-10-1019 (D) Capacity: 50ml, Top Dia: 48mm (1.89in), Bottom Dia: 30mm (1.18in), Height: 54mm (2.05in)
NS6130-10-1019 (E) Capacity: 100ml, Top Dia: 58mm (2.28in), Bottom Dia: 35mm (1.38in), Height: 68mm (2.68in)
NS6130-10-1019 (F) Capacity: 150ml, Top Dia: 66mm (2.6in), Bottom Dia: 40mm (1.57in), Height: 80mm (3.15in)
NS6130-10-1019 (G) Capacity: 250ml, Top Dia: 79mm (3.11in), Bottom Dia: 42mm (1.65in), Height: 93mm (3.66in)
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%

Expert Reviews

Terence Mitchell, PhD, (ICAI School of Engineering Madrid, Spain)

A crucible is a container that can withstand very high temperatures and is used for metal, glass, and pigment production as well as a number of modern laboratory processes. In past centuries crucibles were usually made from clay, they can be made from any material that withstands temperatures high enough to melt or otherwise alter its contents.


Dr. Steven Atkinson,Professor, (University of Nottingham,UK)

Crucibles may be as small as teacups or may hold several tons of metal. They may be fixed in place within a furnace structure or may be designed to be removed from the furnance for pouring at the end of each melt. Crucibles are used in fuel-fired furnances, in electric resistance furnances, in induction furnaces or simply to transfer molten metal.


Dr. Ms. Huian Ruan, (Taungoo Technological University, Myanmar)

Crucibles offers many different performance characteristics aseach application presents a complex set of temperature, chemical, and physical parameters which define the technical boundaries within which the crucible has to bedesigned to operate.


Dr. Marco Ferro,MD PhD, (University of Nordland Bodø, Norway)

Good thermal conductivity and even heating are important crucible properties in transferring the heat from the interior of the furnance through the crucible to the metal charge. Crucibles with high graphite content in the carbon binder offer high thermal conductivity for fast melting in glass-fired furnaces


Zirconium Oxide Crucible

Zirconium Oxide Crucible
