Nanopowder Compounds

Stock No.
NS6130-02-281
CAS
409-21-2
MSDS
MSDS-PDF
Specifications
SPEC-PDF
COA
COA-PDF
Catalogue
MSDS pdf

Nano Silicon Carbide Powder

(SiC, Beta, Purity: 99.9%, APS: <90nm)
Available Pack Size: 10Gms, 25Gms, 50Gms, 100Gms, 250Gms, 500Gms, 1Kg & Bulk orders
Aster-260®
facebook link button
sem---sic-nanoparticles-img
Preview
SEM - SiC Nanoparticles
particles-size-analysis-img
Preview

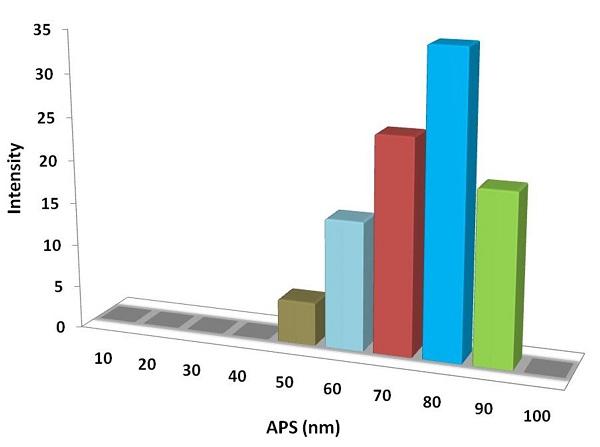

Particles Size Analysis
silicon-carbide-img
Preview

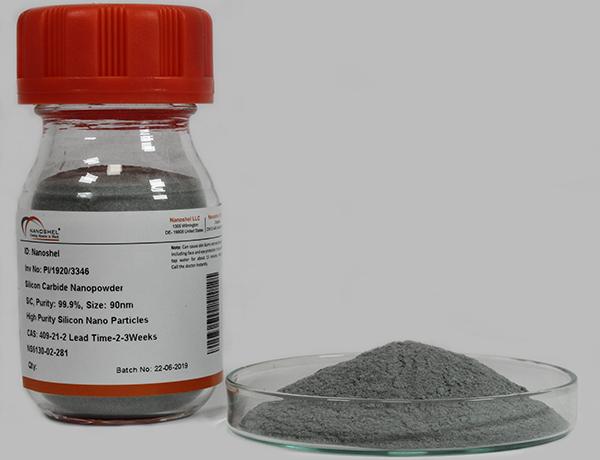

Silicon Carbide
ProductNano Silicon Carbide Powder
Stock No.NS6130-02-281
CAS409-21-2Confirm
APS< 90nmConfirm
Purity99.9 %Confirm
Molecular FormulaSiCConfirm
Molecular Weight40.10 g/molConfirm
FormPowderConfirm
Crystal TypeBetaConfirm
ColorBlackConfirm
Density3.2 g/cm³Confirm
Melting Point2830 °CConfirm
Young's Modulus370 to 490 GPaConfirm
Quality ControlEach Lot of Nano Silicon Carbide Powder was tested successfully
Main Inspect VerifierManager QC

Typical Chemical Analysis

Assay99.9%
Other Metals 800 ppm

Expert Reviews

product-expert-image
Dr. Myron Rubenstein Ph.D (Polytechnic University of Turin, Italy)

Nano Silicon Carbide Powder: Silicon carbide (SiC) is composed of tetrahedral (structure) of carbon and silicon atoms with strong bonds in the crystal lattice. This produces a very hard and strong material. Silicon carbide is not attacked by any acids or alkalis or molten salts up to 800°C. In air, SiC forms a protective silicon oxide coating at 1200°C and is able to be used up to 1600°C. The high thermal conductivity coupled with low thermal expansion and high strength gives this material exceptional thermal shock resistant qualities.

product-expert-image
Dr. Huojin Chan  (University of Science and Technology of China, Hefei, Anhui, China)

Nano Silicon Carbide Powder: Silicon carbide ceramics with little or no grain boundary impurities maintain their strength to very high temperatures. Chemical purity, resistance to chemical attack at temperature, and strength retention at high temperatures has made this material very popular as wafer tray supports and paddles in semiconductor furnaces. The electrical conduction of the material has lead to its use in resistance heating elements for electric furnaces, and as a key component in thermistors (temperature variable resistors) and in varistors (voltage variable resistors).

product-expert-image
Dr. Ms. Yi Yen Shi  (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

Nano Silicon Carbide Powder: SiC whiskers, which are nearly single crystals, are produced (grown) using different methods, including the heating of coked rice hulls, reaction of silanes, reaction of silica and carbon, and the sublimation of SiC powder. In some cases a third element used as a catalyst, such as iron, is added to the reacting materials to facilitate the precipitation of the SiC crystals. In this arrangement, the mechanism for the SiC whisker growth is called the vapor liquid-solid (VLS) mechanism. SiC whiskers are in the order of microns in diameter and grow several hundred microns in length.

product-expert-image
Dr. Bruce Perrault Ph.D (Georgia Institute of Technology (Georgia Tech), USA)

Nano Silicon Carbide Powder: The ability of Silicon Carbide to withstand very high temperatures without breaking or distorting is used in the manufacture of ceramic brake discs for sports cars. It is also used in bulletproof vests as an armor material and as a seal ring material for pump shaft sealing where it frequently runs at high speed in contact with a similar silicon carbide seal. One of the major advantages in these applications being the high thermal conductivity of Silicon Carbide which is able to dissipate the frictional heat generated at a rubbing interface.

product-expert-image
Dr. Hans Roelofs Ph.D (National Technical University of Athens, Greece)

Nano Silicon Carbide Powder: In general, SiC has excellent oxidation resistance up to 1650 °C. Oxidation resistance, however, depends largely on the amount of open porosity and particle size, which determine the surface area exposed to oxygen. The higher is the surface area the higher is the oxidation rate. Kinetically, SiC is stable in air up to ~1000°C.

nanoshel-experts

Nano Silicon Carbide Powder

Contact Us:
From us, you can easily purchase Nano Silicon Carbide Powder (SiC, Beta, Purity: 99.9%, APS: <90nm) at great prices. Place online order and we will dispatch your order through DHL, FedEx, UPS. You can also request for a quote by mailing us at sales@nanoshel.com. We invite you to contact us for further information about our company and our capabilities. At Nanoshel, we could be glad to be of service to you. We look forward to your suggestions and feedback.
