Home » Vanadium Carbide Nanopowder (VC, Purity: 99.9%, APS: 80-100nm)


Stock No. CAS MSDS Specification COA
NS6130-12-000294 12070-10-9 MSDS pdf Specification pdf COA pdf


(VC, Purity: 99.9%)

Available Pack Size: 10Gms, 25Gms, 50Gms, 100Gms, 250Gms, 500Gms, 1Kg & Bulk orders

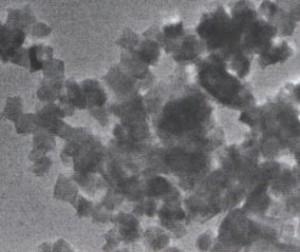

SEM Analysis of Vanadium Carbide

SEM Analysis of Vanadium Carbide

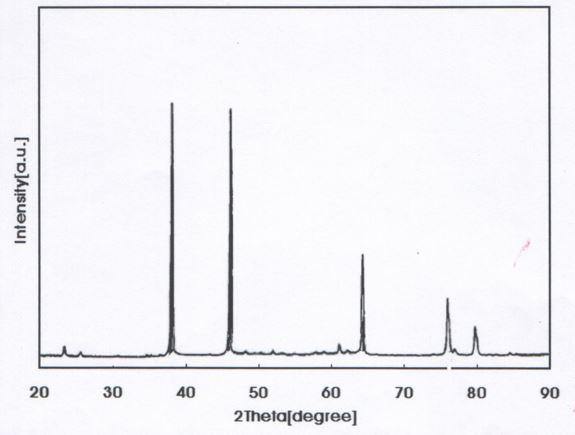

X-Ray Graph of Vanadium Carbide

X-Ray Graph of Vanadium Carbide

Product Vanadium Carbide Nanopowder
Stock No NS6130-12-000294
CAS 12070-10-9 Confirm
APS 80-100nm Confirm
Molecular Formula VC Confirm
Molecular Weight 62.95 g/mol Confirm
Form Powder Confirm
Colour Gray Confirm
Density 5.41 g/cm³ Confirm
Morphology Spherical Confirm
Crystallographic Structure Cubic Confirm
Melting Point 2810 °C Confirm
Quality Control Each lot of Vanadium Carbide Nanopowder was tested successfully.
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%

Expert Reviews

Dr. Bruce Perrault, Ph.D , (Georgia Institute of Technology (Georgia Tech), USA)

Nanoshel’s Vanadium Carbide, is an extremely hard refractory ceramic material. It is commercially used in tool bits cutting tools. It has the appearance of gray metallic powder with cubic crystal structure. Vanadium carbide is chemically stable and has excellent high-temperature property. It can be used as an additive to tungsten carbide to fine the carbide crystals to improve the property of the cermet. Vanadium Carbide can be formed in the orientation, when formed by R.F. Magnetron Sputtering. Vanadium Carbide: Lattice constant of 4.182 angstroms, melting point 2800oC, boiling point 3900oC, good chemical stability and high temperature properties.

Dr. Myron Rubenstein, Ph.D, (Polytechnic University of Turin, Italy)

The strength and wear resistance of carbide ceramics are impressive. Hardness Extreme surface hardness results when a Vanadium Carbide layer is produced. Nanoshel’s Vanadium Carbide retains exceptional hardness of Hv 1,000 even at 800° Centigrade. Furthermore, hardness will be returned to previous levels once the layer is cooled to room temperature after exposure to high temperatures.

Dr. Huojin Chan, (University of Science and Technology of China, Hefei, Anhui, China)

Corrosion-resistance, No corrosion is shown in pieces immersed in a 36 percent hydrochloric acid solution that corrodes stainless steel. Applications emphasize hard surfaces, Nanoshel’s vanadium Carbide has been most often used. Vanadium TD-treated materials show surface hardness in the range of 3,200 to 3,800 on the Vickers hardness scale, for comparison, cemented carbide registers only up to 1,800 on the Vickers scale.

Dr. Ms. Yi Yen Shi, (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

Steel is one of the mostly used materials in South African in the industries such as mining, mineral and metal processing, petrochemical, construction, general engineering, and railway transport, etc. Steel parts are often damaged on the surface through wearing, tearing, scratching, oxidizing or chemical corrosion. In most cases, after any damages occur on metal surface, the entire metal part made of expensive alloy steels may need replaced. One of the challenges is to find ways to improve the surface property of cheap steels in order to enhance its usage properties and ultimately extend the service life in an economic way. Samples of steels with high carbon are treated using the molten slag process to form Vanadium-based alloy layer on the surface of steel.

Dr. Hans Roelofs Ph.D, (National Technical University of Athens, Greece)

Nanoshel’s Vanadium carbide nanopowder was compacted at temperature and pressure of 10 MPs the density of compact was equal to 68% of theoretical density. The large porosity (~30%)of specimen.

Vanadium Carbide Nanopowder

Vanadium Carbide Nanopowder
