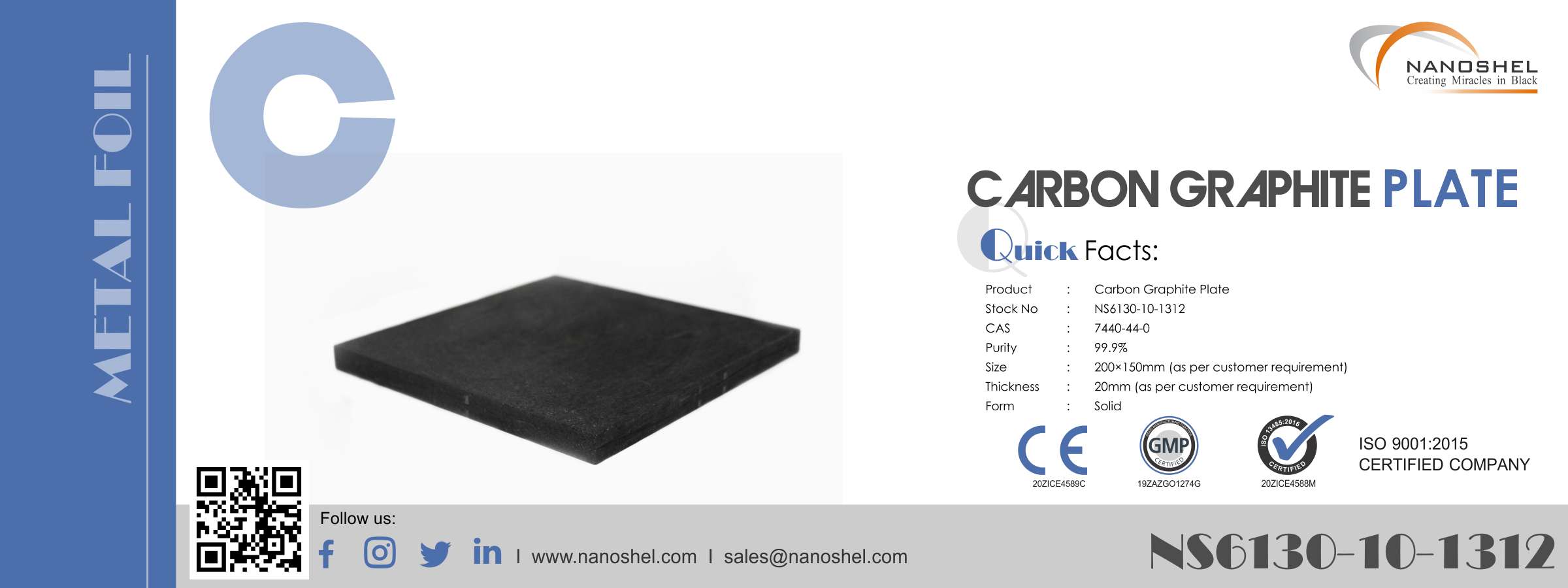

Carbon Graphite Plates (C, Purity: 99.9%, L×W×T: 200×150×20mm)

Carbon Graphite Plates

Product: Carbon Graphite Plates (C, Purity: 99.9%, L×W×T: 200×150×20mm)

Quality Control: Each lot of NANOSHEL Carbon Graphite Plates was tested successfully.

Product Name Carbon Graphite Plates
Stock No. NS6130-10-1312
CAS Number 7440-44-0 Confirm
Purity 99.9% Confirm
Length 200mm Confirm
Width 150mm Confirm
Thickness 20mm Confirm
Molecular weight 12.01g/mol Confirm
Appearance Black/Gray Confirm
Density 2~2.0g/cm3 Confirm
Melting Point 3600°C Confirm
Boiling Point 4826°C Confirm
Specific Heat 0.21 cal/g-°C Confirm
Electrical Resistivity 1.5 x 10-3 ohm-cm Confirm
Coefficient of Thermal Expansion -0.64 ppm/ºC Confirm
Thermal Conductivity  5.40 W/m-ºK Confirm
Tensile Strength 2,723 MPa Confirm
Resistivity 12µΩm Confirm
Main Inspect Verifier Manager QC

 Experts Review:

Miller-(Christopher)-345x239Dr. Baron Augustin, Ph.D (TUM)(Technical University of Munich, Germany)
Carbon fibers or carbon fibres are fibers about 5–10 micrometres in diameter and composed mostly of carbon atoms. To produce a carbon fiber, the carbon atoms are bonded together in crystals that are more or less aligned parallel to the long axis of the fiber as the crystal alignment gives the fiber high strength-to-volume ratio (making it strong for its size). Several thousand carbon fibers are bundled together to form a tow, which may be used by itself or woven into a fabric.


images (33)

Dr. Darren Chandler, Ph.D(Manchester Metropolitan University, U.K)
The properties of carbon fibers, such as high stiffness, high tensile strength, low weight, high chemical resistance, high temperature tolerance and low thermal expansion, make them very popular in aerospace, civil engineering, military, and motorsports, along with other competition sports. However, they are relatively expensive when compared with similar fibers, such as glass fibers or plastic fibers.


Wiggs

Dr. Ms. Cristiana Barzetti (University of Cagliari-Department of Chemical Engineering and Material Science, Italy)
Carbon fibers are usually combined with other materials to form a composite. When combined with a plastic resin and wound or molded it forms carbon-fiber-reinforced polymer (often referred to as carbon fiber) which has a very high strength-to-weight ratio, and is extremely rigid although somewhat brittle. However, carbon fibers are also composited with other materials, such as with graphite to form carbon-carbon composites, which have a very high heat tolerance.


jetsonlee

Dr. Jang Huang, Ph.D (Shandong Science and Technology University, China)
Carbon fiber is most notably used to reinforce composite materials, particularly the class of materials known as carbon fiber or graphite reinforced polymers. Non-polymer materials can also be used as the matrix for carbon fibers. The fiber also finds use in filtration of high-temperature gases, as an electrode with high surface area and impeccable corrosion resistance, and as an anti-static component. Molding a thin layer of carbon fibers significantly improves fire resistance of polymers or thermo set composites because a dense, compact layer of carbon fibers efficiently reflects heat.


images (21)Dr. Mark Brown (Georgia Institute of Technology in Atlanta,USA)
Carbon fibers are used for fabrication of carbon-fiber microelectrodes. In this application typically a single carbon fiber with diameter of 5–7 μm is sealed in a glass capillary. At the tip the capillary is either sealed with epoxy or polished to make carbon-fiber disk microelectrode or the fiber is cut to a length of 75–150 μm to make carbon-fiber cylinder electrode. Carbon-fiber microelectrodes are used either in amperometry or fast-scan cyclic voltammetry for detection of biochemical signaling.


Carbon Graphite Plates
