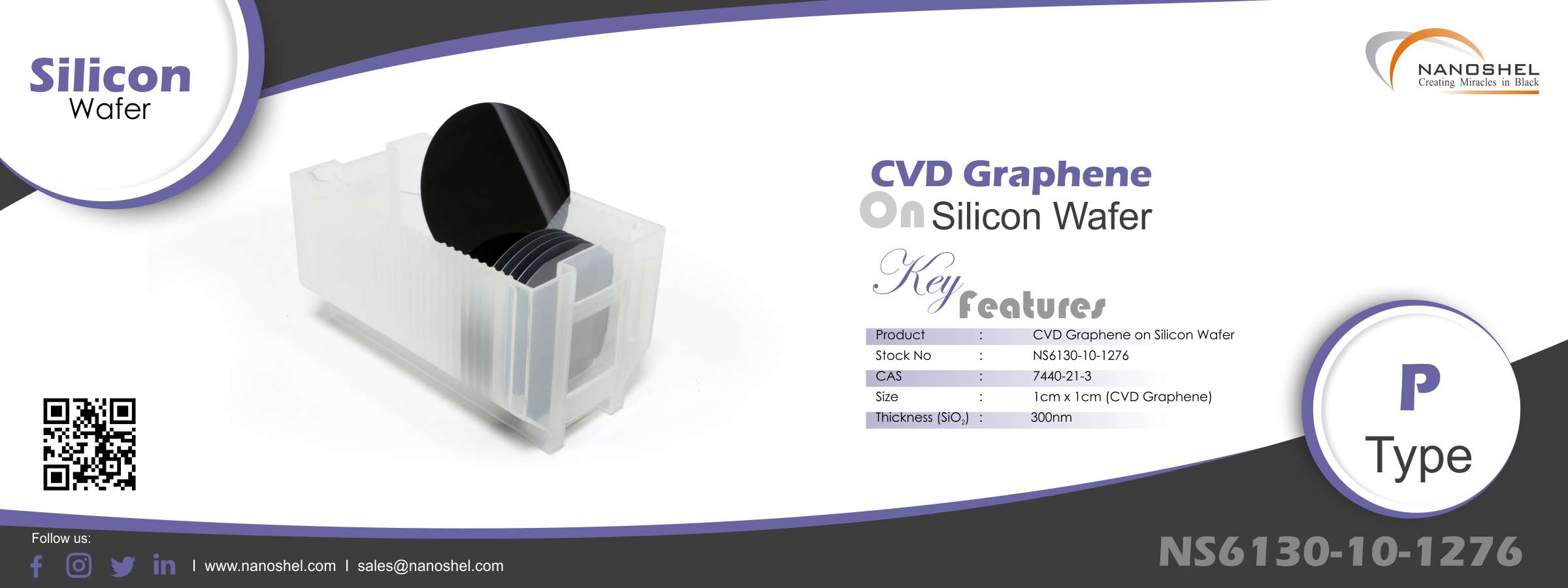

CVD Graphene on Silicon Wafer (Purity: 99.9%, Size: 1*1 cm, P-Doped)

Highly Pure – CVD Graphene on Silicon Wafer

Product: CVD Graphene on Silicon Wafer  (Purity: 99.9%, Size: 1*1 cm, P-Doped)

Quality Control: Each lot of NANOSHEL CVD Graphene on Silicon Wafer tested successfully.

CVD Graphene on Silicon SEM

SEM Analysis of CVD Graphene on Silicon Wafer

Product Name CVD Graphene on Silicon Wafer
Stock No. NS6130-10-1276
Purity > 99.9% Confirm
Graphene Film
Transparency > 97% Confirm
Coverage > 95% Confirm
Thickness 0.345 nm Confirm
FET Electron Mobility on Al2O3 2000 cm2/Vs Confirm
Hall Electron Mobility on SiO2/Si 4000 cm2/Vs Confirm
Sheet Resistance  450±40 Ω/sq (1cm x1cm) Confirm
Grain Size Up to 10 µm Confirm
Silicon Wafer
Dry Oxide Thickness 285 nm Confirm
Type/Dopant P-Doped Confirm
Orientation <100> Confirm
Resistivity <0.005 Ω·cm Confirm
Thickness 525 +/- 20 μm Confirm
Front surface Single Side Polished Confirm
Back Surface Etched Confirm
Particles <10@0.3 μm Confirm
Main Inspect Verifier Manager QC

 Experts Review:

Dr. Henrik Jensen,Ph.D (Middle East Technical University Ankara, Turkey)
Silicon wafers are key component in integrated circuits. Integrated circuits are, simply put a composite of various electronic components that are arranged to perform a specific function. Silicon is the principle platform for semiconductor devices.  A wafer is a thin slice of the semiconductor material, which serves as the substrate for microelectronic devices built in and over the wafer.


Dr. Chiyoko Hayashi (Osaka University Suita, Japan)
As silicon wafer’s primary use is in integrated circuits. Integrated circuits power many of devices that can be used by society everyday. Computers and smartphones are just two of the devices that are dependent on this technology. Silicon is the stable among all the semiconductors. Other uses include sensors, such as the tire pressure sensor system and solar cells. Silicon wafers absorbs the photons in sunlight and this in turn create electricity.



Dr. Joris Smits, Ph.D (Wrocław University of Technology, Poland)
The wafers serves as the substrates for microelectronic devices built in and over the wafer and undergoes many microfabrication process steps such as doping or ion implantation, etching, deposition of various materials and photolithographic pattering.



Dr. Ms. Sally Adams (National Technical University of Athens)
Silicon wafers are available in a variety of diameters from 25.4mm (1 inch) to 300mm. The diameter has gradually increased to improve throughput and reduce cost with the current  state –of-the-art of fab considered to be 300mm with the next standard projected to be 450mm.



Dr. Peter Bruggmann (Technical University of Madrid, Spain)
Wafer thickness is determined by the mechanical strength of the material used the wafer must be thick enough to support its own weight without cracking during handling. Wafers are grown from crystals having a regular crystal structure, with silicon having a diamond cubic structure. Orientation is defined by the Miller index with (100) or (111) faces being the most common for silicon. Ion implantation depths depend on the wafer’s crystal orientation, since each direction offers distinct paths for transport.


CVD Graphene on Silicon Wafer

CVD Graphene on Silicon Wafer

free quote

Contact Us for CVD Graphene on Silicon Wafer
From us, you can easily purchase CVD Graphene on Silicon Wafer at great prices. Place online order and we will dispatch your order through DHL, FedEx, UPS. You can also request for a quote by mailing us at sales@nanoshel.com Contact: +1 302 268 6163 (US and Europe), Contact: +91-9779550077 (India). We invite you to contact us for further information about our company and our capabilities. At Nanoshel, we could be glad to be of service to you. We look forward to your suggestions and feedback.
