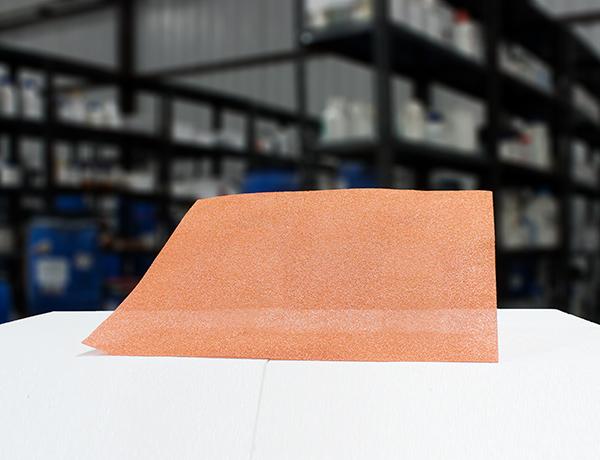

Metallic Copper Foamposite (Cu, PPI-50PPI, Thickness; 2mm)

Metallic Copper Foamposite

Product: Metallic Copper Foamposite

Quality Control: Each lot of NANOSHEL Metallic Copper Foamposite was tested successfully.



Metallic Copper Foamposite

Metallic Copper Foamposite

Stock No. NS6130-10-1007
PPI 50
Bulk Density 0.80-0.85 g/cc
Purity ≥99.8%
Porosity ≥70%
Dimension 500mm X 500mm
Thickness 2mm

Physical Characteristics Metallic Copper Foamposite

Compression Strenth 131 psi
Tensile Strength 1000 psi
Shear Strength 190 psi
Modulus of Elasticity (Compression) 107 kpsi
Modulus of Elasticity (Tension) 14.6 × 103 psi
Shear Modulus 40.9 kpsi
Vickers Hardness 35
Specific Heat 0.385 J/g-°C
Bulk Thermal Conductivity 10.1 W/m-°C
Coefficient of Thermal Expansion 1.7 × 10-5 m/m–°C (0-100°C)
Bulk Resistivity 2.56× 10-5 ohm – in
Melting Point 1080°C

Experts Review:

Terence Mitchell, PhD,(ICAI School of Engineering Madrid, Spain)Terence Mitchell, PhD,(ICAI School of Engineering Madrid, Spain)
Foams are materials with a large amount of interfaces- free surfaces- with the potential to show radiation resistance due to ideally unsaturable sink strength represented by free surfaces. Nanocomposites, Nanophase materials, and Nanofoams could be unusually resistant to radiation because radiation-induced point defects cannot accumulate in the presence of the high density of defects sinks provided by interfaces and surfaces in these materials.


Dr. Ms. Huian Ruan(Taungoo Technological University, Myanmar)Dr. Ms. Huian Ruan(Taungoo Technological University, Myanmar)
Foams are dipped into molten metal, then placed in a vacuum so that the air in the foam’s pores is removed and replaced by the alloy. The foam had pore sizes of about 2mm, that can be tuned to create a stiffer or more flexible materials. During testing of its strength material showed an ability to deform when heated above 144 degrees, regain rigidity when cooled, then return to its original shape and strength when reheated.


Dr. Guowei Kwong, PhD(Ho Chi Minh City University of Science, Vietnam)Dr. Guowei Kwong, PhD(Ho Chi Minh City University of Science, Vietnam)
Amorphous metal foams are highly ductile in compression, and thus offer attractive compromises in mechanical and physical properties between crystalline metallic and ceramic foams. Metal foams have properties which make them suitable for automotive industry,  in ship building, aerospace industry and civil engineering.
