TUNGSTEN Crucibles (Available Sizes 5ml – 100ml)

Tungsten Crucible

Tungsten Crucible

Quality Control: Each lot of Nanoshel Tungsten Crucible was tested successfully.

Crucible Size

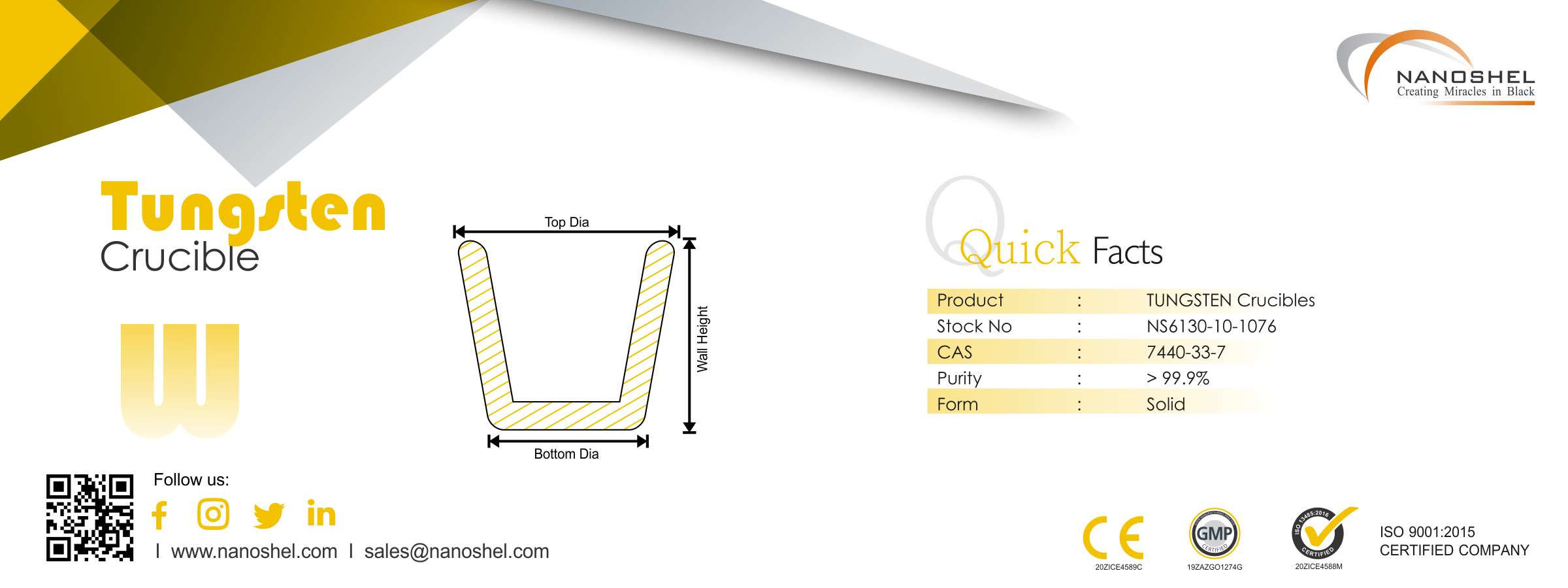

Metal Crucible Line Diagram

Stock No. NS6130-10-1076
Purity >99.9% Confirm
Capacity 5ml Confirm
Density ≥17.8 g/cm³ Confirm
Max Service Temperature 2450 °C Confirm
Melting Point 3422 °C Confirm
Boiling Point 5930 °C Confirm
Main Inspect Verifier Manager QC
Lid Available In All Sizes (Get Quote)

Tungsten Crucible Composition

Ni 0.001 %
P 0.001 %
Mg 0.0005 %
Fe 0.002 %
Pb 0.0001 %
Al 0.0005 %
Bi 0.0001 %
Si 0.001 %
Mo 0.002 %
Ca 0.0005 %

More Tungsten Crucibles Available in Different Sizes

Stock No Capacity (A)
Top Dia
(B)
Bottom Dia
(C)
Height
NS6130-10-1076 (A) 5ml 25mm (0.98in) 15mm (0.59in) 28mm (1.1in)
NS6130-10-1076 (B) 10ml 29mm (1.14in) 18mm (0.71in) 34mm (1.34in)
NS6130-10-1076 (C) 20ml 35mm (1.38in) 24mm (0.94in) 42mm (1.65in)
NS6130-10-1076 (D) 50ml 48mm (1.89in) 30mm (1.18in) 54mm (2.05in)
NS6130-10-1076 (E) 100ml 58mm (2.28in) 35mm (1.38in) 68mm (2.68in)
NS6130-10-1076 (F) 150ml 66mm (2.6in) 40mm (1.57in) 80mm (3.15in)
NS6130-10-1076 (G) 250ml 79mm (3.11in) 42mm (1.65in) 93mm (3.66in)

Experts Review:

Terence Mitchell, PhD,(ICAI School of Engineering Madrid, Spain)

Terence Mitchell, PhD,(ICAI School of Engineering Madrid, Spain)
The leading anti-corrosion character, strength at high temperature, outstanding physical mechanical properties of Nanoshel Tungsten is ideally suited for reboiling, preheating and condensing of nitric acid combinations of these acids with any other chemicals like aqua regia Nanoshel Tungsten equipments are to be made from electron beam melted high purity rod, sheet and tubings.


Dr. Steven Atkinson,Professor(University of Nottingham,UK)

Dr. Steven Atkinson,Professor(University of Nottingham,UK)
Because of its high melting point of 5432ºF, Nanoshel Tungsten has been widely used in the electronics, nuclea, aerospace and chemical industries and in such areas as crucibles, boats, heat shields and others components for vacuum furnace, where heat must be transferred to or from acids and other corrosive fluids and vapors.


Dr. Ms. Huian Ruan(Taungoo Technological University, Myanmar)

Dr. Ms. Huian Ruan(Taungoo Technological University, Myanmar)
Nanoshel Tungsten exhibits excellent resistance to most acids, especially hydrochloric, sulfuric, nitric and aqua regia at normal temperature and is also completely resistance to attack by many molten metals, including sodium, lithium, magnesium, potassium and mercury in temperatures up to 1100ºc (2000ºF)


Dr. Marco Ferro,MD PhD(University of Nordland Bodø, Norway)

Dr. Marco Ferro,MD PhD(University of Nordland Bodø, Norway)
Salts and their solutions generally do not attack Nanoshel Tungsten unless they are prone to alkaline hydrolysis or contain fluorine ions, chlorides and bromides such as ferric chloride, mercury and stannous chloride up to 175ºc (350ºF).


Tungsten Crucible

Tungsten Crucible
