Home » Cu Metal Foam (Copper, Purity: 99.9%, L: 50mm, W: 50mm, 20PPI)

METAL FOAMS (CU/NI/AL/PE)

Stock No. CAS MSDS Specification COA
NS6130-10-1228 7440-50-8 Specification pdf

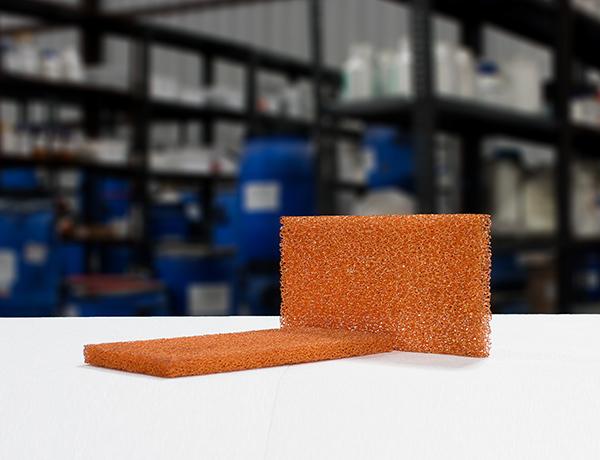

Cu Metal Foam

(Copper, Purity: 99.9%, L: 50mm, W: 50mm, 20PPI)

Available Pack Size: 1Pc, 2Pcs, 5Pcs, 10Pcs & Bulk orders

Product Cu Metal Foam
Stock No NS6130-10-1228
CAS 7440-50-8 Confirm
Purity 99.9% Confirm
Thickness 25mm Confirm
PPI 20 Confirm
Size 50 × 50mm Confirm
Molecular Formula Cu Confirm
Molecular Weight 63.55 g/mol Confirm
Density 8.96 g/cm³ Confirm
Color Reddish Confirm
Melting Point 1085 °C Confirm
Boiling Point 2562 °C Confirm
Thermal Conductivity 401 W •m-1 •K-1 Confirm
Young’s modulus 110–128 GPa Confirm
Vickers hardness 369 MPa Confirm
Quality Control Each lot of Cu Metal Foam was tested successfully.
Main Inspect Verifier Manager QC

Expert Reviews

Dr. Guowei Kwong, PhD(Ho Chi Minh City University of Science, Vietnam)

Foams are materials with a large amount of interfaces- free surfaces- with the potential to show radiation resistance due to ideally unsaturable sink strength represented by free surfaces”. Nanocomposites, Nanophase materials, and Nanofoams could be unusually resistant to radiation because radiation-induced point defects cannot accumulate in the presence of the high density of defects sinks provided by interfaces and surfaces in these materials.


Dr. Marco Ferro, MD PhD(University of Nordland Bodø, Norway)

Foams are dipped into molten metal, then placed in a vacuum so that the air in the foam’s pores is removed and replaced by the alloy.The foam had pore sizes of about 2mm, that can be tuned to create a stiffer or more flexible materials. During testing of its strength material showed an ability to deform when heated above 144 degrees, regain rigidity when cooled, then return to its original shape and strength when reheated.


Dr. Ms. Huian Ruan, Taungoo Technological University, Myanmar

Amorphous metal foams are highly ductile in compression, and thus offer attractive compromises in mechanical and physical properties between crystalline metallic and ceramic foams.Metal foams have properties which make them suitable for automotive industry,  in ship building, aerospace industry and civil engineering.


Cu Metal Foam

Cu Metal Foam
