Home » Titanium Aluminium Nitride (TiAlN, Purity: >99.9%, APS: 80-100nm)

NANOPOWDER COMPOUNDS

Stock No. CAS MSDS Specification COA
NS6130-02-295 7440-32-6/7784-27-2 MSDS pdf Specification pdf COA pdf

Titanium Aluminium Nitride

(TiAlN, >99.9%, 80-100nm)

Celina-200®

Available Pack Size: 10Gms, 25Gms, 50Gms, 100Gms, 250Gms, 500Gms, 1Kg & Bulk orders

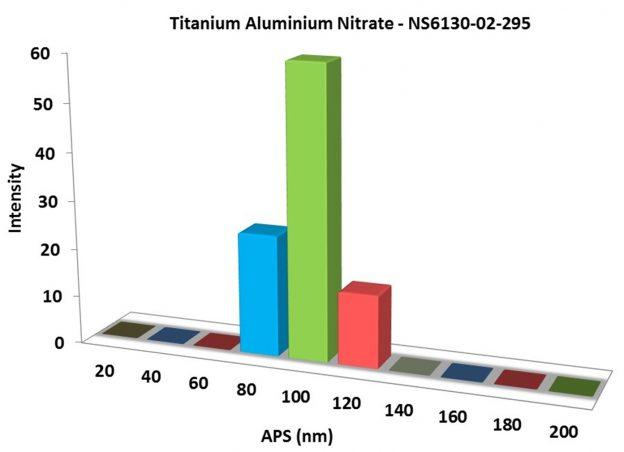

Particles Size Analysis - TiAlN Nanoparticles

Particles Size Analysis - TiAlN Nanoparticles

Titanium Aluminium Nitride

Titanium Aluminium Nitride


Product Titanium Aluminium Nitride Nanopowder
Stock No. NS6130-02-295
CAS 25583-20-4/24304-00-5 Confirm
APS 80-100nm Confirm
Purity >99.9% Confirm
Molecular Formula TiAlN Confirm
Form Powder Confirm
Color Violet-Black/light gray Confirm
Density 5.0-6.0 g/cm³ Confirm
Thermal Conductivity Low Confirm
Solubility Insoluble in water Confirm
Quality Control Each lot of Titanium Aluminium Nitride Nanopowder was tested successfully.
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%
Other Metal 850ppm

Expert Reviews

Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)

The titanium-aluminum-nitride coating (TiAlN), is an all-round coating and universally applicable. TiAlN is a chemical compound of the three elements titanium, aluminum, and nitrogen. The coating thickness is between 1-4 micrometers (μm). The coating offers high resistance to heat and oxidation. This enables working with higher cutting speed and thus accelerating working processes.


Dr. Huojin Chan,  (University of Science and Technology of China, Hefei, Anhui, China)

The Titanium aluminium nitride coating is very well suitable for cutting hard materials like e.g. steel (N/mm²) <1,100 and stainless steel, as well as titanium alloys. As an all-round coating, it is also used for cutting aluminum, brass, bronze, and plastic. In general, it should be noted that both the coating and the tool steel must be suitable for the application in hard materials.


Dr. Ms. Yi Yen Shi,  (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

Titanium aluminum nitride (TiAlN) is a hard coating that solves many tribological problems with components that can be coated at temperatures of 450°C - 475°C.  TiAlN is normally applied to steels, hardened steels, and stainless steel materials where high wear resistance and lubricity are needed. TiAlN coating provides exceptional oxidation resistance and extreme hardness.


Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)

Aluminum titanium nitride coating with its familiar gold color remains the most popular general-purpose coating. TiAlN has the highest adhesion and ductility characteristics of any of the coatings we offer and remains our best seller. The excellent wear resistance, thermal stability, and low coefficient of friction reduce built-up edge and thus improves thermal transfer of heat away from the tool.




Dr. Hans Roelofs, Ph.D (National Technical University of Athens, Greece)

Aluminum titanium nitride (AlTiN) or Titanium Aluminum Nitride (TiAlN) is a thin film coating that was developed from Titanium Nitride. TiAlN offers higher temperature resistance than TiN, as well as slightly higher hardness and especially higher hot hardness (i.e. the hardness at high temperatures). It is primarily used in high-temperature environments above the limits of TiN usage.


Titanium Aluminium Nitride

Titanium Aluminium Nitride
