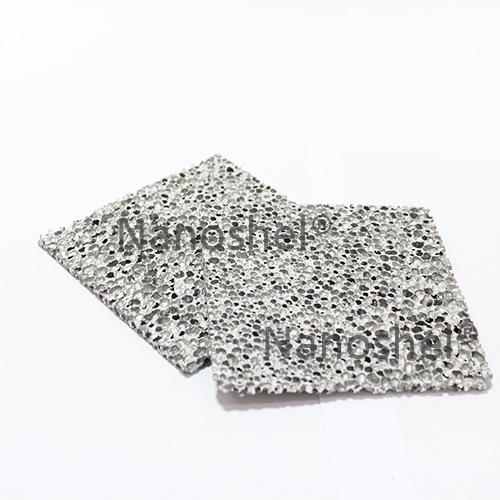

Product | Aluminium Metal Foam | |
Stock No | NS6130-10-1214 | |
Size | 100 x 100 x 10 mm | Confirm |
Pore Size | 2-11 mm (Closed Cell) | Confirm |
Porosity | 60-90% | Confirm |
Density | 0.1 to 0.35 g/cm³ | Confirm |
Compressive Strength | 44 Mpa | Confirm |
Blending Strength | 27 Mpa | Confirm |
Acoustic Absorptive | 0.48 | Confirm |
Acoustic Frequency | Between 125 and 2000HZ | Confirm |
Noise Reduction Coefficient | >0.4 | Confirm |
Thermal Insulation Properties | About 1 / 400 of metal Aluminium | Confirm |
Electromagnetic Wave Frequency | Between 2.6 and 18GHZ | Confirm |
Electromagnetic Shielding Property | Up to 60 - 90dB | Confirm |
Quality Control | Each Lot of Aluminium Metal Foam was tested successfully | |
Main Inspect Verifier | Manager QC |
Typical Chemical Analysis
Aluminium Foam , Thermal Conductivity Aluminium has an extremely high thermal conductivity. Nanoshel Aluminium Foam is used in very high performance heat exchangers. where weight and cost are of low priority. Because of the greater surface area of Nanoshel Aluminium Foam heat transfer to fluids flowing through the foam is greatly accelerated over solid Aluminium and Aluminium fins.
Aluminium Foam as battery electrode materials are highly resistant to atmospheric corrosion and to corrosion in potable water. Aluminium is also resistant to many organic and inorganic materials, and is well known for excellent corrosion resistance.
Aluminium Foam has excellent mechanical property and process ability. Extraordinary electricity and heat conductivity. Massive three- dimensional network structure. Excellent base & corrosion resistant ability. Magnificent electromagnetic shielding ability. Superior tensile strength and favorable ductility.
Aluminium Foam heat diffusion, dissipation and exchange materials for electronic components such as CPU, display card and LED etc. Electrode material for batteries, such as lithium ion battery, fuel cell, nickel-zinc battery, etc. Electromagnetic shielding material. Catalyst and its carrier material. Various initial-efficiency, intermediate-effeciency and sub-micron filtration material. Decoration materials for construction.
Aluminium Foam and nickel metal foams can be used in a number of applications. Some of the basic applications include electrode material for batteries, such as nickel-zinc battery, lithium ion battery and fuel cell; heat diffusion, dissipation and exchange materials for electronic components such as LED, display card and CPU; catalyst and its carrier material; electromagnetic shielding material; decoration materials for construction; and a variety of sub-micron filtration, initial- efficiency and intermediate-efficiency materials.
Nanoshel’s Product Categories Link:
Aluminium Metal Foam (Al, Size: 100mm×100mm×10mm, Closed Cell, 2-11mm)
