METAL FOAMS (CU/NI/AL/PE)

Stock No. CAS MSDS Specification COA
NS6130-10-1215A 7429-90-5 Specification pdf

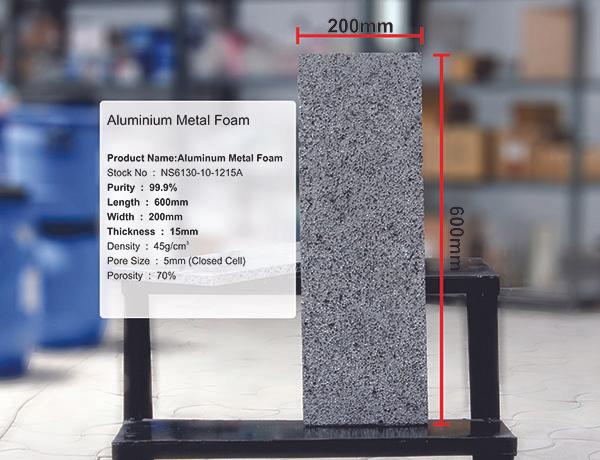

Aluminium Metal Foam Closed Cell

Metal Foam Sheet Bonded with 0.5mm Face Sheet


Product Aluminium Metal Foam Closed Cell
Stock No NS6130-10-1215A
CAS 7429-90-5 Confirm
Porosity 70% Confirm
Thickness 15mm Confirm
Size 600mm x 200mm Confirm
Pore size 5mm Confirm
Density 0.45 g/cm³ Confirm
Resistivity 100 Times Over Metal Aluminium Confirm
Compressive Strength 44 Mpa Confirm
Blending Strength 27 Mpa Confirm
Acoustic Absorptive 0.48 Confirm
Acoustic Frequency Between 125 and 2000HZ Confirm
Noise Reduction Coefficient >0.4 Confirm
Thermal Insulation Properties About 1 / 400 of metal Aluminium Confirm
Electromagnetic Wave Frequency Between 2.6 and 18GHZ Confirm
Electromagnetic Shielding Property Up to 60 - 90dB Confirm
Heat Resistivity 660 °C Confirm
Green Environmental Protection Non toxicity, 100% Recyclable, Easy to process and installation
Quality Control Each lot of Aluminium Metal Foam Closed Cell was tested successfully.
Main Inspect Verifier Manager QC

Expert Reviews

Dr. Guowei Kwong, PhD(Ho Chi Minh City University of Science, Vietnam)

Aluminium Foam , Thermal Conductivity Aluminium has an extremely high thermal conductivity. Nanoshel Aluminium Foam is used in very high performance heat exchangers. where weight and cost are of low priority. Because of the greater surface area of Nanoshel Aluminium Foam heat transfer to fluids flowing through the foam is greatly accelerated over solid Aluminium and Aluminium fins.


Dr. Marco Ferro, MD PhD(University of Nordland Bodø, Norway)

Aluminium Foam  as battery electrode materials are highly resistant to atmospheric corrosion and to corrosion in potable water. Aluminium is also resistant to many organic and inorganic materials, and is well known for excellent corrosion resistance.


Dr. Ms. Huian Ruan, Taungoo Technological University, Myanmar

Aluminium Metal Foam Closed Cell has excellent mechanical property and process ability. Extraordinary electricity and heat conductivity. Massive three- dimensional network structure. Excellent base & corrosion resistant ability. Magnificent electromagnetic shielding ability. Superior tensile strength and favorable ductility.


Dr. Steven Atkinson, Professor(University of Nottingham,UK)

Aluminium Metal Foam Closed Cell heat diffusion, dissipation and exchange materials for electronic components such as CPU, display card and LED etc. Electrode material for batteries, such as lithium ion battery, fuel cell, nickel-zinc battery, etc. Electromagnetic shielding material. Catalyst and its carrier material. Various initial-efficiency, intermediate-effeciency and sub-micron filtration material. Decoration materials for construction.


Terence Mitchell, PhD,(ICAI School of Engineering Madrid, Spain)

Aluminium Foam and nickel metal foams can be used in a number of applications. Some of the basic applications include electrode material for batteries, such as nickel-zinc battery, lithium ion battery and fuel cell; heat diffusion, dissipation and exchange materials for electronic components such as LED, display card and CPU; catalyst and its carrier material; electromagnetic shielding material; decoration materials for construction; and a variety of sub-micron filtration, initial- efficiency and intermediate-efficiency materials.


Aluminium Metal Foam Closed Cell

Aluminium Metal Foam Closed Cell
