Home » Aluminum Silicate Nanoparticles (Al2SiO5, Purity: 99.9%, APS: <100nm)

NANOPOWDER COMPOUNDS

Stock No. CAS MSDS Specification COA
NS6130-10-1163 12141-46-7 MSDS pdf Specification pdf COA pdf

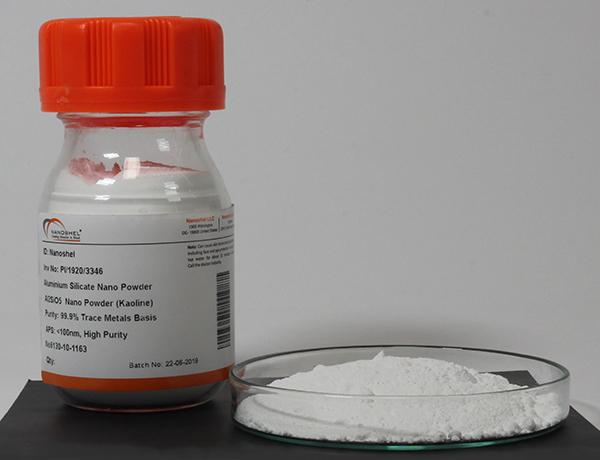

Aluminum Silicate Nanoparticles

(Al2SiO5, Purity: 99.9%, APS: <100nm)

Available Pack Size: 10Gms, 25Gms, 50Gms, 100Gms, 250Gms, 500Gms, 1Kg & Bulk orders
TEM - Al2SiO5 Nanoparticles

TEM - Al2SiO5 Nanoparticles

Particles Size Analysis

Particles Size Analysis

Aluminium Silicate

Aluminium Silicate


Product Aluminum Silicate Nanoparticles
Stock No. NS6130-10-1163
CAS 12141-46-7 Confirm
APS <100nm Confirm
Purity 99.9% Confirm
Molecular Formula Al2SiO5 Confirm
Molecular Weight 162.05 g/mol Confirm
Form Powder Confirm
Color White/off white Confirm
Density 2.3-2.5 g/cm³ Confirm
Specific Heat 840 J/kg-K Confirm
Tensile Strength 6.9 to 21 MPa (Ultimate) Confirm
Thermal Conductivity 2.0W/m-K Confirm
Thermal Expansion 2.5 to 3.3µm/m-K Confirm
Quality Control Each lot of Aluminum Silicate Nanoparticles was tested successfully.
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Silica (SiO2) 52 %
Alumina (Al2O3) 45 %
TiO2 1.5 %
Fe2O3 0.5 %
MgO 0.3 %
All Other Metal < 0.1 %

Expert Reviews

Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)

Nanoparticles are not solely a product of modern technology, but are also created by natural processes such as volcano eruptions or forest fires. Naturally occurring nanoparticles also include ultrafine sand grains of mineral origin (e.g. oxides, carbonates). A decisive feature that makes nanoparticles technically interesting is their surface-to-volume ratio. This ratio increases with decreasing particle diameter.


Dr. Huojin Chan,  (University of Science and Technology of China, Hefei, Anhui, China)

Nanoparticles of a metal compound, e.g., a metal oxide, a doped metal compound, and a metal complex, are widely used in the fields of chemical catalysts, optoelectronic materials, optical materials, sensor materials, flame retardant materials, electrode materials and others. Such nanoparticles are provided in various shapes which include, e.g., spherical particles, nanofibers, and nanosheets having enhanced surface activity.


Dr. Ms. Yi Yen Shi,  (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

Metal compounds are extensively used as flame retardants; their key advantage consists in that no toxic combustion products are released during combustion and exploitation of the composite.  Most of metal-containing flame retardants are effective smoke suppressants.


Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)

Metal compound nanoparticles act by forming dense protective surface layers and by increasing the yield of carbonaceous residue. Therefore, the following flammability characteristics of polymer materials are essential for assessment of their flame-retardant performance: burning rate to be determined in accordance with, coke number, temperature and rate of mass loss, and other.


Dr. Hans Roelofs, Ph.D (National Technical University of Athens, Greece)

Metal compounds are often used as synergistic additives to other types of flame retardants.  Metal compounds of transition metals are of particular interest because of their structural, spectral and chemical properties are often strongly dependant on the nature of the ligand structure.


Aluminum Silicate Nanoparticles

Aluminum Silicate Nanoparticles
