Home » Niobium Nitride Nanopowder (NbN, Purity: 99.9%, APS: 10-20nm)

NANOPOWDER COMPOUNDS

Stock No. CAS MSDS Specification COA
NS6130-02-296 24621-21-4 MSDS pdf Specification pdf COA pdf

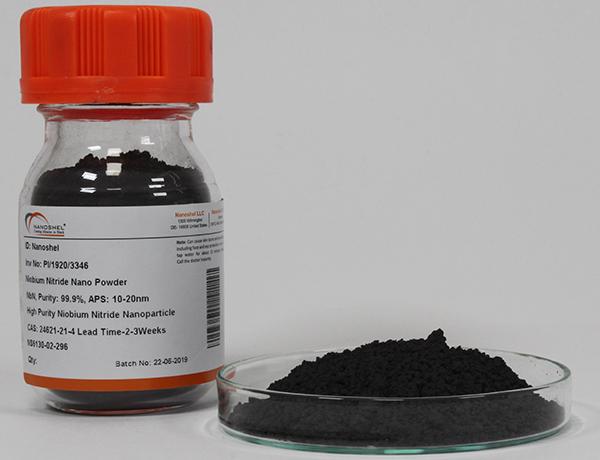

Niobium Nitride Nanopowder

(NbN, Purity: 99.9%, APS: 10-20nm)

Celina-220®

Available Pack Size: 10Gms, 25Gms, 50Gms, 100Gms, 250Gms, 500Gms, 1Kg & Bulk orders
SEM - NbN Nanoparticles

SEM - NbN Nanoparticles

Particles Size Analysis

Particles Size Analysis

Niobium Nitride Nanopowder

Niobium Nitride Nanopowder


Product Niobium Nitride Nanopowder
Stock No. NS6130-02-296
CAS 24621-21-4 Confirm
APS 10-20nm Confirm
Purity 99.9 % Confirm
Molecular Formula NbN Confirm
Molecular Weight 106.91 g/mol Confirm
Form Powder Confirm
Color Gray Confirm
Density 8.47 g/cm³ Confirm
Melting Point 2573 °C Confirm
Solubility Reacts With Ammonia
Quality Control Each lot of Niobium Nitride Nanopowder was tested successfully.
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%
Other Metal 850ppm

Expert Reviews

Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)

Niobium nitride nanopowder is mainly used as a superconductor. Detectors based on it can detect a single photon in the 1-10 micrometer section of the infrared spectrum, which is important for astronomy and telecommunications. It can detect changes up to 25 gigahertz. Niobium nitride is also used in absorbing anti-reflective coatings.


Dr. Huojin Chan,  (University of Science and Technology of China, Hefei, Anhui, China)

Niobium nitride nanopowder (NbN) coatings have many interesting properties such as chemical inertness, excellent mechanical properties, high electrical conductivity, high melting point, and a superconducting transition temperature between 16 and 17 K. For this reason, these compounds have many potential thin-film applications.


Dr. Ms. Yi Yen Shi,  (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

The different phases of niobium nitride exhibit unique properties which make it a very promising candidate for many applications. For instance, Niobium nitride nanopowder possesses high hardness, a high melting point, and superconducting properties. Most of the niobium nitride phase show superconducting properties in the range of 9-17 K depending on their crystal structure.


Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)

Niobium nitride nanopowder is the best choice for fabricating efficient superconducting single-photon detectors for the visible and near-infrared spectrum. Since these detectors have an excellent time resolution and a high signal-to-noise ratio, their application ranges from low photon flux astronomy to quantum cryptography and quantum information processing.


Dr. Hans Roelofs, Ph.D (National Technical University of Athens, Greece)

Niobium (Nb) is the most commonly used material in superconducting electronics [1-3], but several groups have been investigating the properties of metals and alloys that could represent an alternative to it. Niobium nitride, in particular, is a promising material in this respect given its relatively high critical temperature and energy gap of the order, respectively, of 16 K and 2.5 mV. The transition temperature is appealing because of the progress achieved in closed-cycle refrigeration, while the value of the gap is stimulating for engineering devices in the terahertz range.




Niobium Nitride Nanopowder

Niobium Nitride Nanopowder
