Home » Hafnium Carbide Nanoparticles (HfC, Purity: 99.9%, APS: 100nm)

NANOPOWDER COMPOUNDS

Stock No. CAS MSDS Specification COA
NS6130-02-298 12069-85-1 MSDS pdf Specification pdf COA pdf

Hafnium Carbide Nanoparticles

(HfC, Purity: 99.9%, APS:100nm)

Celina-260®

Available Pack Size: 10Gms, 25Gms, 50Gms, 100Gms, 250Gms, 500Gms, 1Kg & Bulk orders

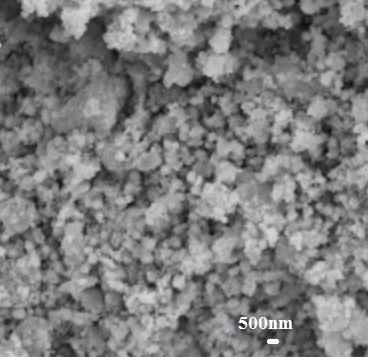

SEM - HfC Nanoparticles

SEM - HfC Nanoparticles

Particles Size Analysis

Particles Size Analysis

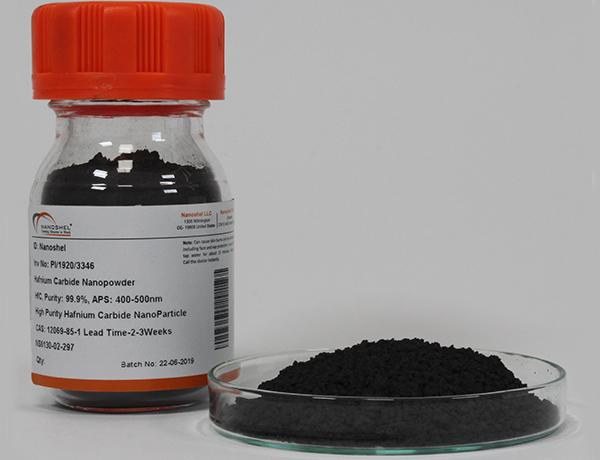

Hafnium Carbide Nanopowder

Hafnium Carbide Nanopowder


Product Hafnium Carbide Nanoparticles
Stock No. NS6130-02-298
CAS 12069-85-1 Confirm
APS 100nm Confirm
Purity 99.9 % Confirm
Molecular Formula HfC Confirm
Molecular Weight 190.50 g/mol Confirm
Form Powder Confirm
Color Gray Confirm
Density 12.2 g/cm³ Confirm
Melting Point 3890 °C Confirm
Solubility Insoluble in water
Quality Control Each lot of Hafnium Carbide Nanoparticles was tested successfully.
Main Inspect Verifier Manager QC

Typical Chemical Analysis

Assay 99.9%
Other Metal 850ppm

Expert Reviews

Dr. Myron Rubenstein, Ph.D (Polytechnic University of Turin, Italy)

Hafnium carbide (HfC) is a chemical compound of hafnium and carbon. With a melting point of about 3900 °C, it is one of the most refractory binary compounds known. Hafnium carbide powder is a very hard material. It is used in hard coatings. It is also used as rocket nozzle throat material and in metal-ceramic materials. It has low oxidation resistance, with the oxidation starting at temperatures as low as 430 °C.


Dr. Huojin Chan,  (University of Science and Technology of China, Hefei, Anhui, China)

Hafnium is ductile and has a brilliant silver luster. The metal has a close-packed hexagonal crystal structure. It exhibits excellent mechanical properties and has extremely good corrosion resistance. The electronics industry use a hafnium-based compound that can be employed in gate insulators in the 45 nm generation of integrated circuits.


Dr. Ms. Yi Yen Shi,  (King Mongkut’s University of Technology Thonburi,Bangkok, Thailand)

Hafnium carbide-based compounds are practical high dielectrics, allowing reduction of the gate leakage current which improves performance at such scales. Also, Due to its heat resistance and its affinity to oxygen and nitrogen, hafnium is a good scavenger for oxygen and nitrogen in gas-filled and incandescent lamps. Hafnium is also used as the electrode in plasma cutting because of its ability to shed electrons into air.


Dr. Bruce Perrault, Ph.D (Georgia Institute of Technology (Georgia Tech), USA)

Hafnium carbide is the most refractory binary compound known to man. Similarly, hafnium nitride (HfN) is the most refractory nitride known with a melting point of approximately 3305 °C. Hafnium carbide is used in hard coatings, often applied by processes such as plasma spraying.


Dr. Hans Roelofs, Ph.D (National Technical University of Athens, Greece)

Hafnium Carbide (HfC) is one example of advanced ceramic fiber matrices. It is a compound with the highest known melting temperature: 3890C. In theory, a part made with Hafnium Carbide fiber-matrix composite would survive temperatures that would soften or melt even refractory metal-metal alloys such as rhenium-tungsten blends. HfC has about 60 percent the density of metal alloys, so critical rocket, missile and aerospace components made with HfC composites would be correspondingly lighter.


Hafnium Carbide Nanoparticles

Hafnium Carbide Nanoparticles
